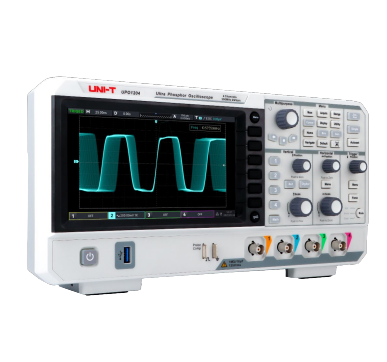

UNI-T UPO1204 Digital Oscilloscopes (200MHz, 2 GSa/s, 4CH)
Manufacturer: UNI-T Model: UPO1204 - Contact
Bandwidth: 200MHz
Channel: 4
Sampling rate: 2 GSa/s
Waveform capture rate: 150,000 wfm/s, 500,000 wfm/s (Fast Acquire)
Storage depth: 56 Mpts
Vertical Range: 8-bit
Vertical Scale: 1 MΩ: 500μV/div to 20 V/div
Gain accuracy:
<10mV: ±4.0% full scale
≥10mV: ±3.0% full scale
Time base range: 1 ns/div to 1000 s/div
Frequency meter: 7 digit
Bus Analysis: RS232/UART, I2C, SPI
Auto Measurement: 36
Waveform recording: 120,000
FFT points: 1Mpts
Interface: USB Host, USB Device, LAN
Display: 7inch TFT-LCD (800x480)
