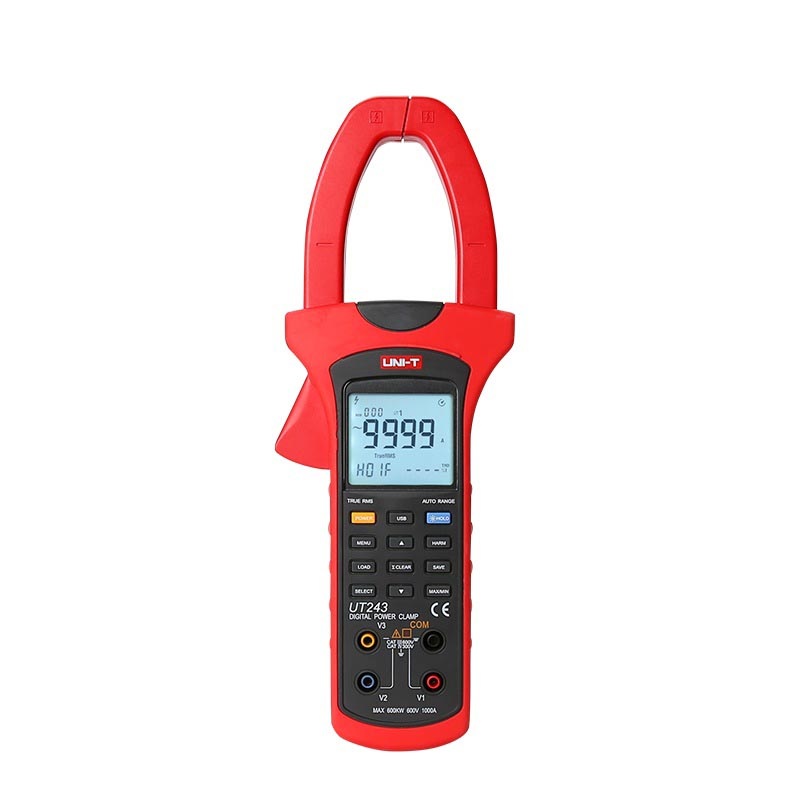

UNI-T UT243 Power and Harmonics Clamp Meter (1000A,600V)
Manufacturer: UNI-T Model: UT243 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
AC current (A): 1000A ±(2%+5)
AC voltage (V): 600V ±(1.2%+5)
Frequency (Hz): 40Hz~80Hz ±(0.5%+5)
Active power (W): 0.01kW~600kW ±(3%+5)
Apparent power (VA): 0.01kVA~600kVA ±(3%+5)
Reactive power (VAr): 0.01kVAr~600kVAr ±(4%+5)
Power factor: 0.3~1 ±0.022
Phase angle (°): 0°~360° ±2°
Active energy (Wh): 1kWh~9999kWh ±(3%+2)
Display count: 10000
Auto range: Yes
Jaw opening: 50mm
True RMS: AC voltage/AC current
Auto power off: Yes
Low battery indication: Yes
Data hold: Yes
MAX/MIN: Yes
Data storage: 999
USB interface: Yes
LCD backlight: Yes
Full icon display: Yes
Harmonic analysis: 1~20
Setup: Yes
Single-phase 2-wire: Yes
3-phase 3-wire: Yes
3-phase 4-wire: Yes
Phase sequence test: Positive phase, reverse phase, phase deficiency
Input impedance for DCV: ≥5MΩ
Input protection: Yes
Power: 1.5V battery (R6) x 4
Display: 46mm x 42mm
Product color: Red and grey
Product net weight: 601g
Product size: 303mm x 112mm x 39mm
Standard accessories: Batteries, test leads, alligator clips, USB interface cable, PC software CD
