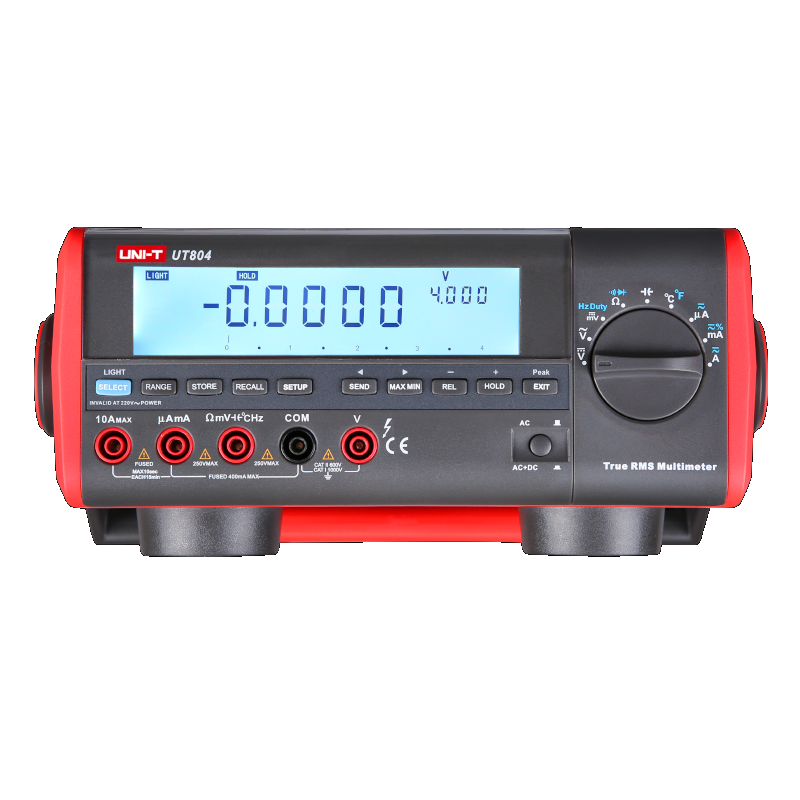

UNI-T UT804 Bench Multimeter

DC voltage (V)(1000V): ±(0.025%+5)

AC voltage (V) (750V): -

AC voltage (V) (10000V): ±(0.4%+30)

DC current (A) (10A): ±(0.1%+15)

AC current (A)(10A): ±(0.7%+15)

Resistance (Ω):

+  20MΩ : -

+  40MΩ: ±(0.3%+40)

Capacitance (F):

+ 40mF: ±(1%+20)

+ 6mF: -

Frequency (Hz):

+ 10Hz~60MHz: -

+ 40Hz~400MHz: ±(0.01%+8)

Temperature:

+  -40°C~1000°C:  ±(1%+30)

+  -40°F~1832°F: ±(1.5%+50)

Features

Display count Other Features: 40000

Duty ratio (0~100%): ±(1.0%+40)

Auto power off/Low battery indication

Data storage: 9999

USB interface/LCD backlight: Double LCD backlight

Peak hold/Auto/manual alarm

Dot-matrix LCD 256 × 64 pixels: No

Analog bar graph: 81

Input protection

4~20mA: 0~100% : ±(1%+50)

General Characteristics

Power: UT804: AC 220V/50Hz or 1.5V batteries (R14) x 6

Display: 128mm x 28mm

Product color: White and grey

Product net weight: UT804: 2.2kg;

Product size: UT804: 310mm x 240mm x 105mm

Standard accessories: Test lead, multi-purpose socket, AC 220V power cord, software CD, RS-232 interface cable, USB interface cable, alligator clip, point contact temperature probe (UT804), probe (UT805A )

Standard individual packing: Carton box, English manual

Standard carton measurement: UT804: 680mm x 365mm x 320mm

Standard carton gross weight: UT804: 14.5kg
