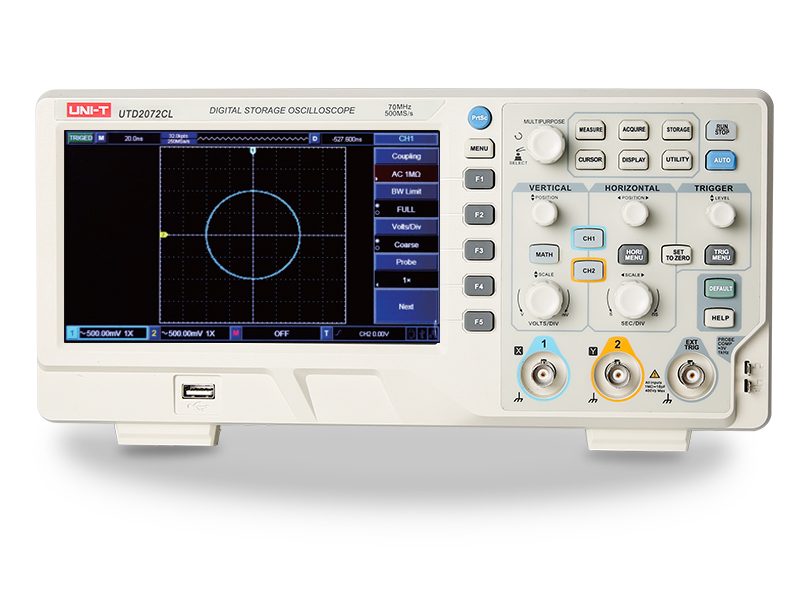

UNI-T UTD2072CL Digital Storage Oscilloscope (70MHz, 2CH, 500MS/s)

Channels: 2

Bandwidth: 70MHz

Sampling rate: 500MS/s

Rise time: ＜5ns

Memory depth: 64kpts

Waveform capture rate: >5000wfms/s

Vertical scale (V/div): 1mV/div~20V/div

Time base scale (s/div): 2ns/div~50s/div

Timing accuracy: ≤± (50+2 × service life)ppm

Timebase mode: Y-T, X-Y, Roll

Storage methods: Setup, wave, bitmap

Trigger types: Edge, pulse width, Slope, video, alternate

Mathematical operations: ＋, －, ×, ÷, FFT

Auto measurements: Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF,  Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total

Displayed measurements: Display 5 measurements at the same time

Frequency counter: 6 bits

Interface: USB OTG, Pass/Fail

Power: 100-240VAC, 45-440Hz

Display: 7 inches  TFT LCD, 800×480

Product color: White and grey

Product net weight: 2.5kg

Product size: 306mm×138mm×124mm
