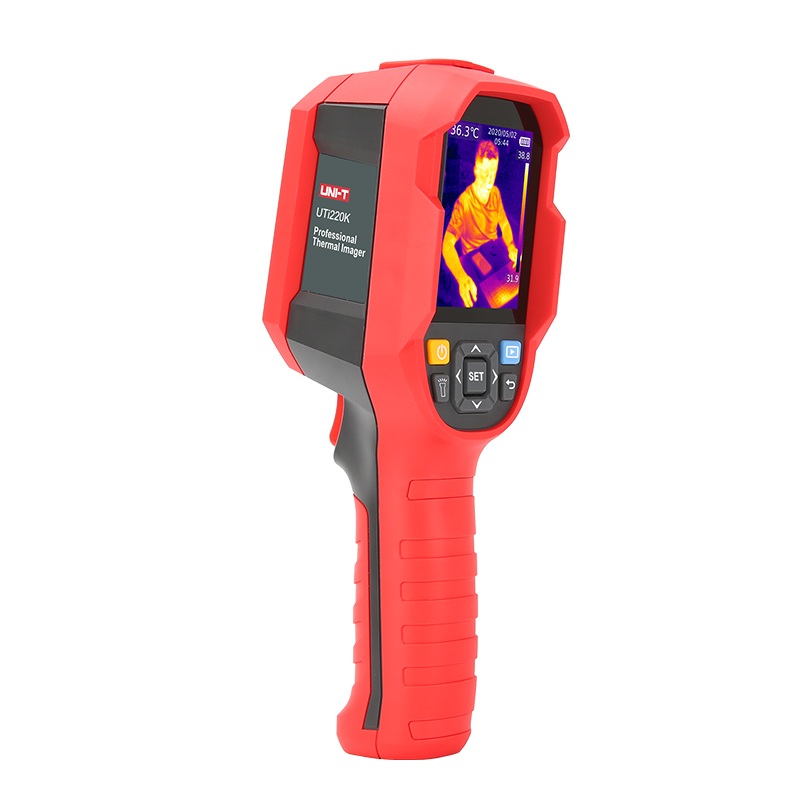

UNI-T UTi220K Thermal Imager (30˚C~45˚C, 200×150)
Manufacturer: UNI-T Model: UTi220K Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Sensor: Uncooled focal plane
Temperature range: 30˚C~45˚C
Resolution: 0.1˚C
Accuracy: ±0.5˚C (at 25˚C ambient temperature)
Optimal measuring distance: 1m
Temperature measurement response time: ≤500ms (95% of reading)
Thermal resolution: 30000 (200×150)
Pixel dimemsions: 12μm
Palettes: Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy: 8~14μm
Field of view (FOV): 35°(H) × 26°(V)
Instantaneous field of view (IFOV): 3.1mrad
Thermal imaging sensitivity: <100mk
Frame rate: <9Hz
Temperature display: Center temperature measurement and high temperature tracking (default)
Image format: BMP
Image modes: Thermal camera, visible camera, ROI
Temperature measuring point: Besides central point, 3 temperature measuring points can be added
Visual camera: Yes
Resolution of visible light: 640×480
Display resolution: 320×240
Image blending: 0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC): Yes
Real-time image transmission: Through PC software
Data communication: Type-C USB
Auto power off: Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life: ≥6 hours
Charging time: ≤5 hours
Charging voltage/current: 5V/2A
Image storage: Micro SD card
Power: A single Li-ion 3.7V/5000mAh 26650 battery
Display: 2.8" TFT LCD
Product color: Red & grey
Product size: 236mm x 75.5mm x 86mm
Standard accessories: Manual, Type-C USB cable, 16GB TF card
