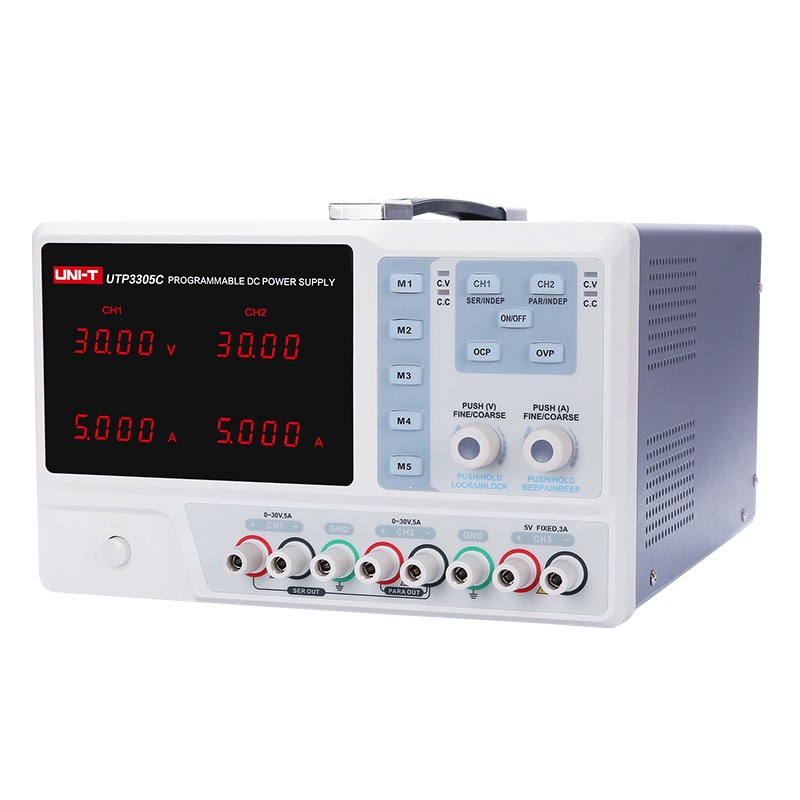

UNI-T UTP3305C DC Regulated Power Supply (30V/5A/315W)
Manufacturer: UNI-T Model: UTP3305C Origin: China Guarantee: 12 Month - Contact
Output voltage: 0~30V(CH1/CH2), 5V(CH3)
Output current: 0~5A(CH1/CH2), 3A(CH3)
Output power: 315W
Accuracy:
+ Voltage: ＜0.5%+20mV
+ Current: ＜0.5%+10mA
Display: 4 bit
Interfaces: USB Device, RS-232
Programmable: Yes
Over voltage/current protection: Yes
Over temperature protection: Yes
Ripple (20Hz~20MHz): Voltage ≤2mVrms, Current ≤3mArms
Power: AC 100V/120V/220V/230V±10%, 50Hz/60Hz
Display: 4 windows, LED
Product net weight: 9.1kg
Product size: 260mm x 176mm x 317mm
Standard accessories: USB and RS-232 interface cables, output cables, PC software CD
