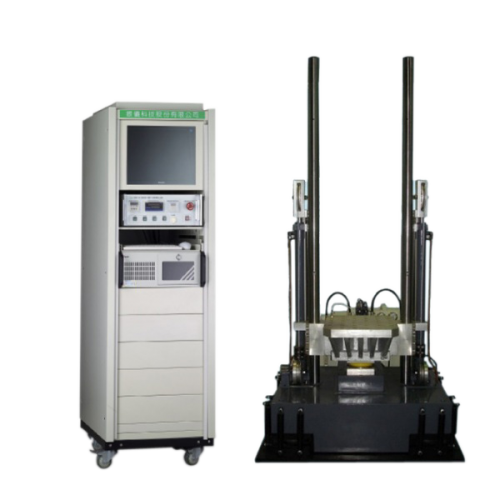

Vibsource SHOCK-400 Shock Tester (400kg)

Max.payload (kg): 400

Table size (mm): 600x800

Shock waveform: Half-sine

                             Final-peak saw-tooth

                             Trapezoidal

Peak acceleration (m/s²): 100~6000

                                         150~1000

                                         300~1000

Pulse duration (ms): 40~2

                                 18~6

                                 12~6

Shock tester

- Dimension WxDxH (mm): 1500x1200x2700

- Weight (kg): 5000

Hydraulic Pump

- Dimension WxDxH (mm): 650x500x650

- Weight (kg): 45

Power source: 220/380V 50/60Hz 7.2kW
