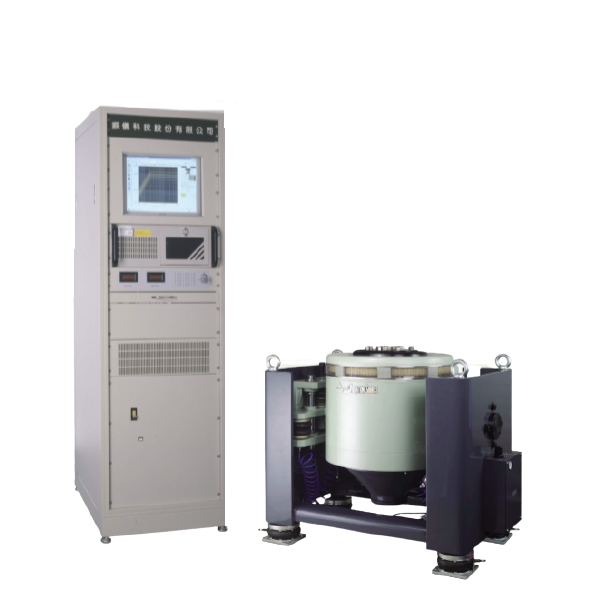

Vibsource VS-5000-102 Vertical Type Vibration Tester (1-2500Hz, 800kg)

Rated sine/random force (KN): 50

Shock force (KN): 100

Frequency range

- Bare table (Hz): 1-2500

- Horizontal table (Hz):

Max acceleration

- Bare table: 90G

- Horizontal table (G): depends on the mass of slip table

Max. Velocity (m/sec): 2

Max. Displacement (p-p) (mm): 100

Moving element mass (kg): 56

Maximum payload: 800kg

Vertical shaker weight (kg): 4500

Vertical shaker dimension WxDxH(cm): 175x120x145

Power amplifier (kVA): 50

Power requirements (kVA): 82

Weight (kg): 550

Rack dimension WxDxH(cm): 62x101x210

Cooling method: Forced air

Blower type: BTE-11KW

Weight: 178kg

Dimension WxDxH(cm): 74x70x72
