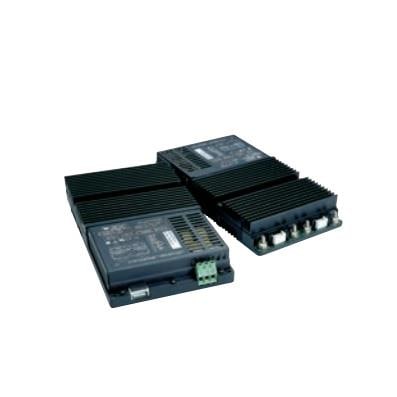

Vicor VI-LU3-EU AC-DC Converter 24V 200W FLATPAC 1UP
Manufacturer: Vicor Model: VI-LU3-EU - Contact
Width: 124.5 mm (4.902 in)
Height: 34.8 mm (1.37 in)
Length: 234.8 mm (9.244 in)
Industry: Industrial
Approvals: UL1604, UL60950-1, UL/CSA/EN/IEC60950-1
Compliance: UL1604; UL60950-1; UL/CSA/EN/IEC 60950-1
Unit Weight: 1.028 kg
Output Power: 200 W
REACH - SVHC: Details
Input Voltage: 90 VAC to 264 VAC
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 4.242 kVDC
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 40 A
Output Voltage-Channel 1: 24 VDC
Operating Temperature Range: 0 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: 0 C
