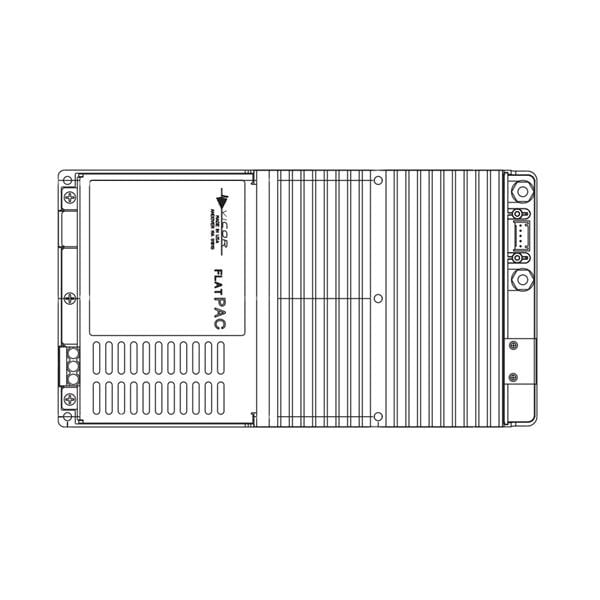

Vicor VI-MUL-IS FlatPAC Autoranging AC-DC Switcher VI-MUL-IS

Width: 124.5 mm (4.902 in)

Height: 34.8 mm (1.37 in)

Length: 234.8 mm (9.244 in)

Industry: Industrial

Approvals: CE, CSA, EN, cTUVus, cURus, FCC, IEC60950-1, UL60950-1

Compliance: CE, CSA, EN, cTUVus, cURus, FCC, IEC 60950-1, UL 60950-1

Efficiency: 80 % to 90 %

Output Power: 300 W

REACH - SVHC: Details

Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Voltage-Channel 1: 28 VDC

Operating Temperature Range: - 30 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
