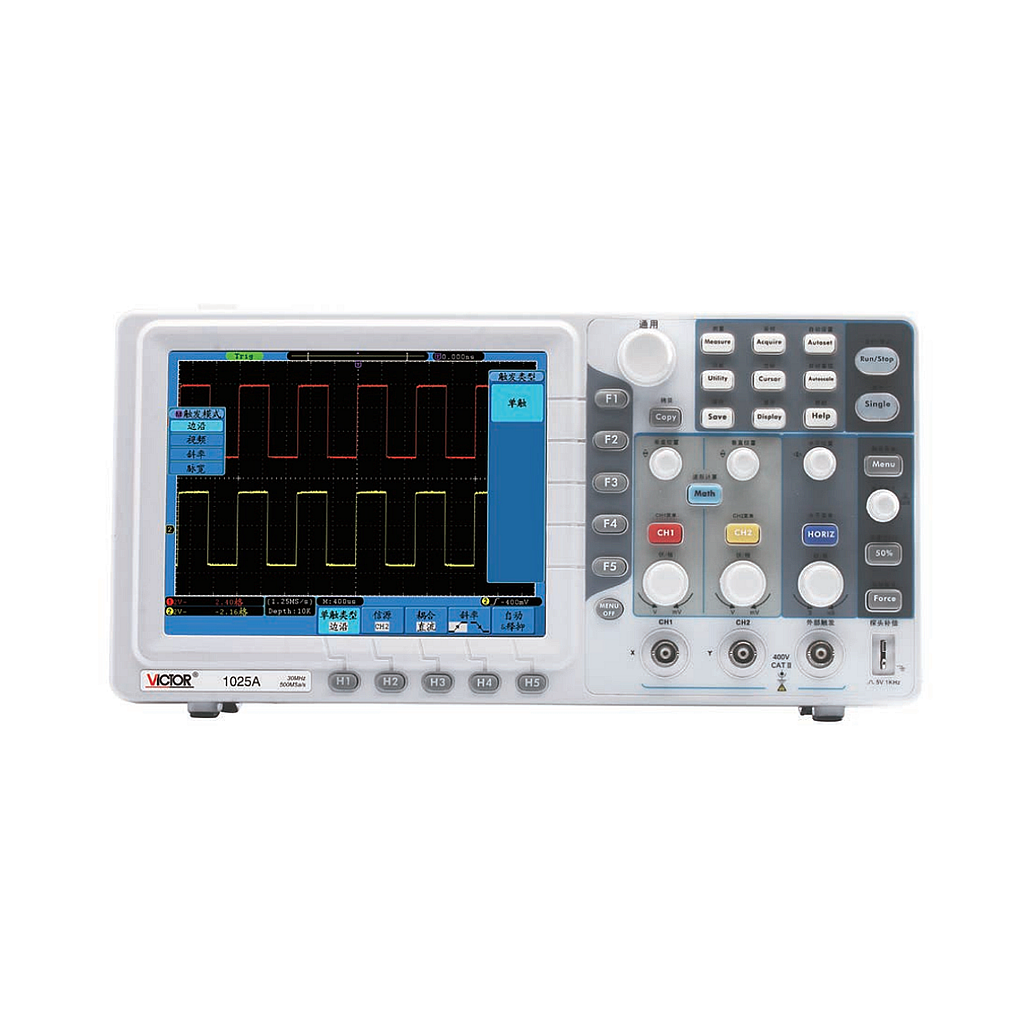

VICTOR 1025A Oscilloscope (30 MHz, 500Ms/s, 2Ch)

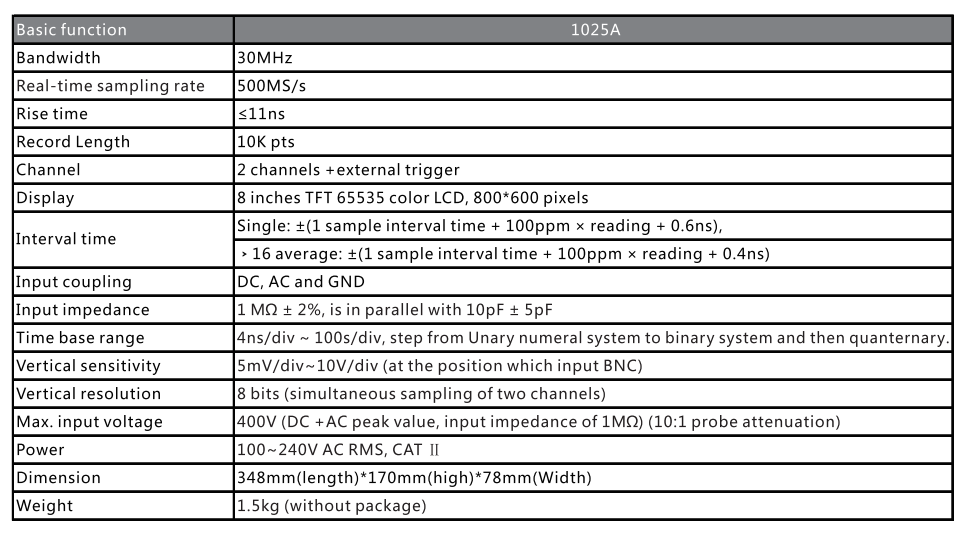

Bandwidth: 30MHz

Real-time sampling rate: 500Ms/s

Rise time: ≤ 11ns

Record Length: 10K

Channel: 2 channels + external trigger

Display: 8 inches TFT 65535 color LCD, 800*600 pixels

Interval time:

Single: ±(1 sample interval time + 100ppm x reading + 0.6ns),

16 average: ±(1 sample interval time + 100ppm x reading + 0.4ns)

Input coupling: DC, AC and GND

Input impedance: 1 M2 ± 2%, is in parallel with 10pF ± 5pF

Time base range: 4ns/div ~ 100s/div, step from Unary numeral system to binary system and then quanternary.

Vertical sensitivity: 5mV/div~10V/div (at the position which input BNC)

Vertical resolution: 8 bits (simultaneous sampling of two channels)

Max. input voltage: 400V (DC +AC peak value, input impedance of 1M)(10:1 probe attenuation)

Power: 100~240V AC RMS, CAT II

Dimension: 348mm(length)*170mm(high)*78mm(Width)

Weight: 1.5kg
