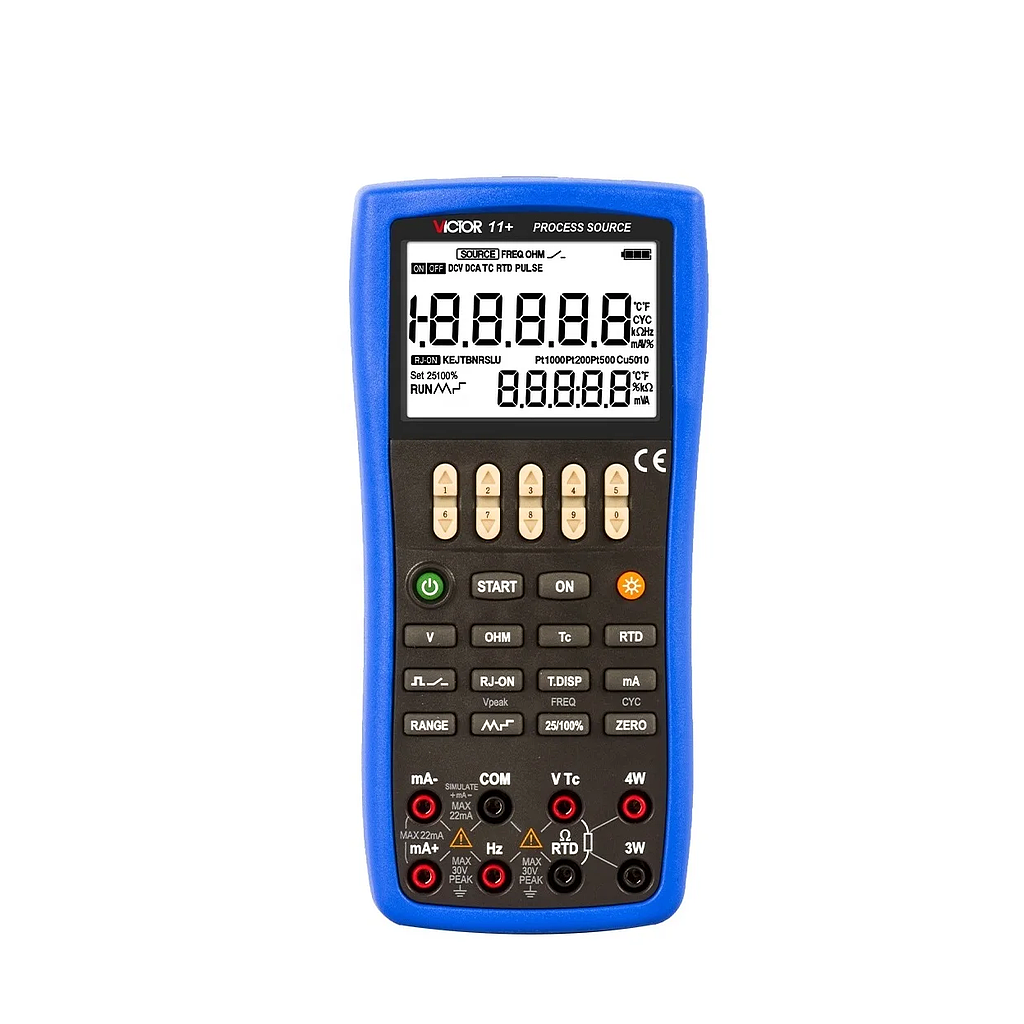

VICTOR 11+ Portable Temperature Calibrators (-10～1100mVDC, -1～11VDC, 0～22mADC)

SOURCE

DC millivolt

Range: -10 ～ 1100mV

Accuracy= ±(% of the set value+% of range): 0.02%+0.01%

Resolution: 1uV

DC voltage

Range: -1 ～ 11V

Accuracy= ±(% of the set value+% of range): 0.02%+0.01%

Resolution: 0.1mV

DC current

Range: 0 ～ 22mA

Accuracy=±(% of the set value+% of range): 0.02%+0.02%

Resolution: 1uA

Sink current

Range: 0 ～ 22mA

Accuracy±(% of the set value+% of range): 0.02%+0.02%

Resolution: 1uA

External power supply: 5 ～ 28V

Resistance

Range: 0 ～ 40KΩ

Accuracy= ±(% of the set value+% of range): 0.02%+0.02%

Resolution: 0.01Ω/0.1Ω/1Ω

Frequency

Range: 1Hz ～100KHz

Accuracy: ±2words

Resolution: 0.01Hz/1Hz/0.1KHz/2KHz

Pulse

Frequency: 1Hz ～10KHz

Range: 1 ～100000cyc

Accuracy: ±2words

Resolution: 1cyc

Switch

Range: 1Hz ～100KHz

Accuracy: ±2words

Resolution: 0.01Hz/1Hz/0.1KHz/2KHz

Thermocouple

Range: 10types(R/S/K/E/J/T/B/N/L/U)

Accuracy: 0.4℃

Resolution: 0.1℃/1℃

RTD

Range: 6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50)

Accuracy: 0.2℃

Resolution: 0.1℃

Other functions:

Backlight: √

Auto Power-off: √

Charging function: √

Room temperature display: √

Battery detection: √

Communication function: RS232 serial communication, can realize remote control instrument by the device driver software

The mathematical treatment: Data hold,zero,average

Display: Double display on the LCD screen

Power supply: 4×1.5V AAA alkaline battery

Size: 205 × 95 × 42 mm

Weight: About 500g
