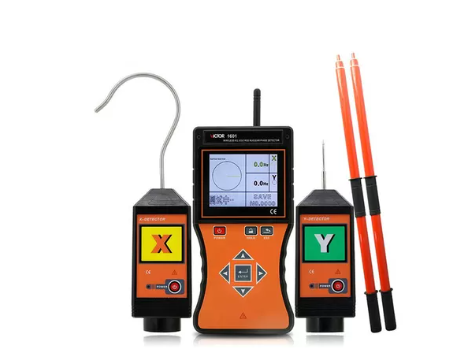

Power Source:DC 3.7V chargeable lithium battery, USB charging portal, working continuously for 10h
Transmission Method:315MHz and 433MHz wireless transmission
Phase Distance:About 160m
Display Mode:3.5-inch true color LCD display
Measurement Range:Phase checking voltage level: AC 10V～550kV; Phase: 0.0°～360.0°; Frequency: 45Hz～75Hz
Resolution:0.1°; 0.1Hz
Accuracy:Phase ≤10°; Frequency ≤±2Hz(23℃±5℃, 80%RH below )
Phase Judge:In phase:-30°～30°; out of phase: 90°～150° and 210°～270°
Voice Function:Voice such as in phase, out of phase, X signal normal, Y signal normal, etc.
Size of Insulation Rod:About 5m long after extended; about 1m long after drawn back (5 nodes)
Electric Indicator:Detector sends out buzz like "beep - beep - beep"
Phase Checking Method
Contact phase checking: When the bare wire voltage is less than 35kV, or less than 110kV with a safety insulation sheath wire, adopt contact phase checking. (operating with an insulation rod)
Noncontact phase checking: When the bare wire voltage is more than 35kV, or more than 110kV with a safety insulation sheath wire, adopt noncontact phase checking. (operating with an insulation rod)
Automatic Shutdown:About 15mins after startup, the instrument will be automatically shut down to reduce battery consumption
Rated CurrentDetector: 35mA max; Receiver: 300mA max
Instrument MassDetector: 205g (including battery) Receiver: 395g (including battery)
Insulation rod: 1.45kg Total mass: 9.8kg (including box)
Working Humidity And Temperature:-10℃～40℃; below 80%Rh
Storage Humidity And Temperature:-10℃～60℃; below 70%Rh
