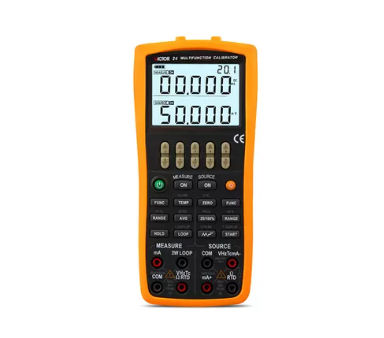

VICTOR 24 Process Calibrators (-10 ～ 110mVDC, -0.1 ～ 11VDC, 0 ～ 22mADC)

SOURCE

DC millivolt

Range: -10 ～ 110mV

Accuracy= ±(% of the set value+% of range): 0.02%+0.01%

Resolution: 1uV

DC voltage

Range: -1 ～ 11V

Accuracy= ±(% of the set value+% of range): 0.02%+0.01%

Resolution: 10uV/0.1mV

DC current

Range 0 ～ 22mA

Accuracy=±(% of the set value+% of range): 0.02%+0.02%

Resolution: 1uA

Sink current

Range: 0 ～ 22mA

Accuracy±(% of the set value+% of range): 0.02%+0.02%

Resolution: 1uA

External power supply: 5 ～ 28V

Resistance

Range: 0 ～ 40KΩ

Accuracy= ±(% of the set value+% of range): 0.02%+0.02%

Resolution: 0.01Ω/0.1Ω/1Ω

Frequency

Range: 1Hz ～100KHz

Accuracy: ±2words

Resolution: 0.01Hz/1Hz/0.1KHz/2KHz

Standard Accessories

Two pair of Industrial testing Lead (H000002)

A pair of Testing Probe (H000000)

A pair of Alligator clip (H010000)

A quick reference guide

A User's Manual

One Fuse 50mA/250V

One Fuse 100mA/250V
