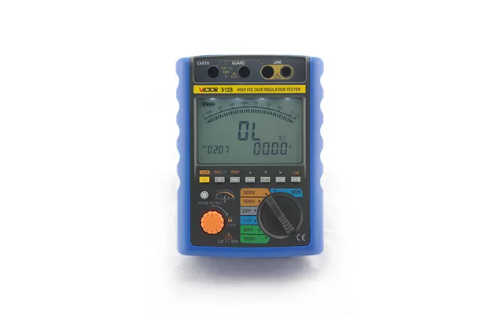

VICTOR 3125 Insulation tester (5000V)
Manufacturer: VICTOR Model: 3125 - Contact
Rated voltage: 500V / 1000V / 2500V / 5000V
Measuring Range:
0.0～99.9GΩ
Open circuit Voltage:
DC 500V + 20% ,-0%
DC 1000V + 20%,-0%
DC 2500V + 20%,-0%
DC 5000V +20%,-0%
Rated Current:
1mA--1.2mA (at 0.5MΩ load)
1mA--1.2mA (at 1MΩ load)
1mA--1.2mA (at 2.5MΩ load)
1mA—1.2mA (at 5MΩ load)
Short-circuit Current: Approx. 1.3mA
Accuracy: ±5%rdg ± 3dgt / ±20%(100GΩ or more)
