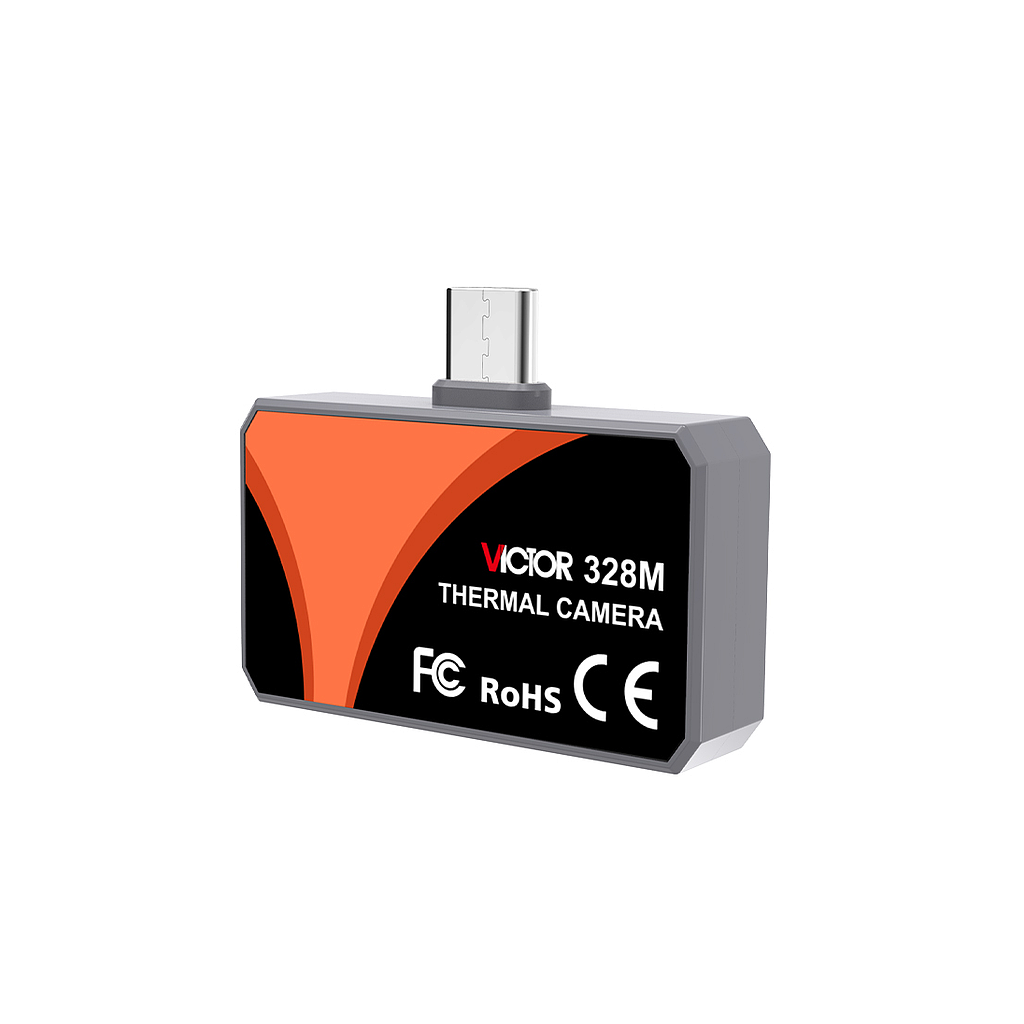

VICTOR 328M Mobile thermal image camera (−20°C~550°C; 96 × 96)

Infrared Thermal Imaging

Detector type: Uncooled vanadium oxide (VOx) microbolometer

Infrared resolution: 96 × 96

Pixel pitch: 12 μm

Focal length: 1.35 mm

Focus mode: Fixed focus

Field of view (FOV): 50° × 50°

Spatial resolution (IFOV): 8.89 mrad

Spectral range: 8–14 μm

NETD: ≤60 mK @ 25°C

Frame rate: 25 Hz

Temperature measurement range (Normal): −20°C to 150°C

Temperature measurement range (Auto): −20°C to 550°C

Temperature measurement range (High): 100°C to 550°C

Temperature measurement accuracy: ±2°C or ±2% of reading

Measurement distance: 0.3–3 m

Measurement mode: Industrial temperature measurement

Temperature display: Center point, maximum temperature, minimum temperature

Basic Parameters

Operating temperature: −10°C to 50°C

Storage temperature: −20°C to 60°C

Data interface: Type-C

Device weight: Approx. 20 g

Device dimensions: 44 × 26 × 12 mm
