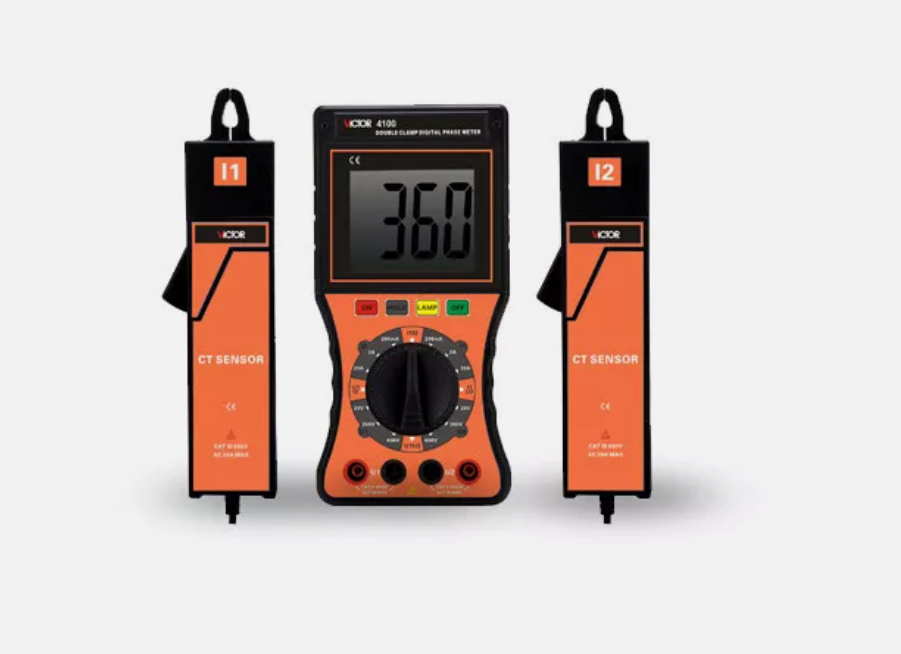

VICTOR 4100 Digital phase meter (600VAC, 20AAC)

Phase : 0～360° ±1°

Voltage: AC 0～20V/200V/600V ±1.2%±2dgt

Current : AC 0～20mA/2A/20A ±1.0%±2dgt

The  phase range of the measured signal (during phase measurement)

U1-U2   : 30V~600V

I1-I2:10mA~20.00A

U1~I2/I1~U2:10V~600V,10mA~20.00A

Features

Clamp Size: Ф7.5mm×13mm

Display: LCD with backlight (70mm×62mm)

Operation Way: Manual  Range

Sample Rate: 3 times/s

Data Hold  √

Auto Power Off: 15 minutes idle

Low Battery Indication  √

Test Leads Length: 1.5m

Clamp Probe Length: 2m

Operation Condition: (-10～40)℃;   <80%Rh

Storage Condition: (-10～60)℃ ;   <70%Rh

General Information

Power Supply: 1.5V AA x6

Product Size: 196mm×92mm×54mm

Product Weight: Main Unit:550 / Clamps :170gx2/ Test Leads : 250g

Standard Accessories: Manual, Battery, Test Leads, Pouch Clampsx2,Tool Case
