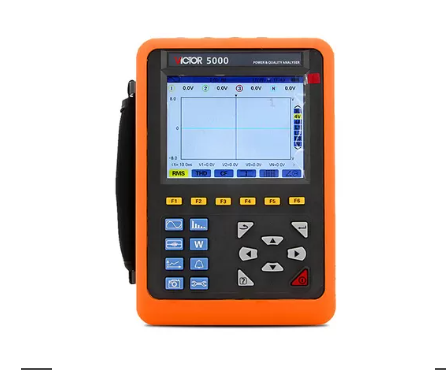

VICTOR 5000 Power Quality Analyzer (40Hz~ 70Hz, TRMS)

Power supply: Rechargeable lithium-ion battery packs 9.6V, backup charger.

Battery indicator: Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.

Power consumption: Current consumption of normal test 490 mA, continuous working for 8 hours.

Display mode: LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.

Size of clamp

008 small sharp current clamp: 7.5mm×13mm;

040circle current clamp: 35mm×40mm;

068Bcircle current clamp: 68mm×68mm.

300F Flexible Coil Current Sensor (with Integrator) : Ф300mm

Instrument dimensions L×W×H: 240mm×170mm×68 mm.

Number of channels: 4U/4I.

Phase-to phase voltage: 1.0V~2000V.

Phase-to-neutral voltage: 1.0V~1000V.

Current

008B current clamp: 10mA~10.0A;

040B current clamp: 0.10A~100A;

068B current clamp: 1.0A~1000A;

300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A

Frequency: 40Hz~70Hz.

Parameters of electricity: W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters: Wh, Varh, Vah.

Harmonic: Order 0~50.

Total harmonic distortion: Order 0~50, each phase.

Expert mode: Yes.

Number of Transient records 150 sets.

Voltage flicker Yes.

Starting current mode: Yes, 100 seconds.

3 phases unbalance: Yes.

Record: 300 days(simultaneous recording 20 parameters, record one point every 5 seconds).

Min/Max recorded value: Measurement of maximum and minimum values over a period of time.

Alarm: 40 different types of parameter selections, 12,800 sets alarm logs.

Peak: Yes.

Phasor diagram display: Automatically.

Capacity of snapshots: 60.

Menu language: English/Chinese.

Communication: USB.

Automatic switching off

When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress,the device is not automatic switching off.

In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.

Backlight function: Yes, suitable for use at night and dark place.

Weight Host: 1.6kg (with battery).

008B small sharp current clamp: 170g×4;

040Bcircle current clamp: 190g×4;

068Bcircle current clamp: 510g×4;

300F Flexible Coil Current Sensor (with Integrator) : 330g×4;

Test wires and power adapter: 900g;

Total weight: about 9.2kg (with packaging).

Length of voltage test wire: 3m.

Length of current sensor wire: 2m.

Working temperature and humidity: -10°C~40°C; below 80%Rh.

Storage temperature and humidity: -10°C~60°C; below 70%Rh.

Input impedance Input impedance of test voltage:1MΩ.

Withstand voltage: Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.

Insulation: Between instrument wiring and shell ≥10MΩ.

Structure: Double insulation, with insulation vibration-proof sheath.

Safely rules: IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
