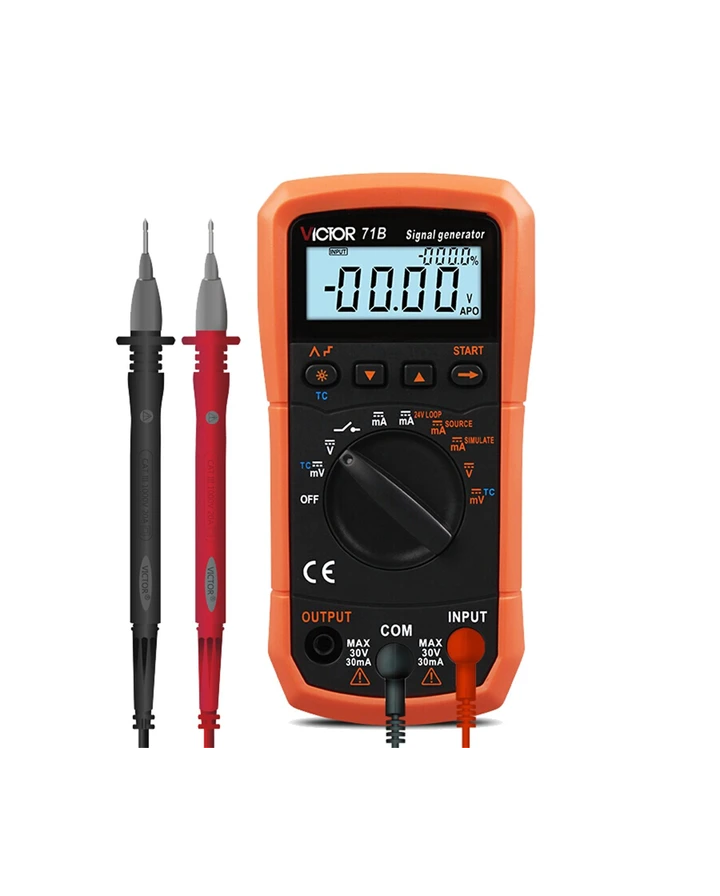

VICTOR 71B Signal Generator (0～110mVDC, 0 ～ 10VDC, 0 ~ 22mADC)

SOURCE

DC millivolt

Range: 0～110mV

Basic accuracy: 0.2%+4dgt

Resolution: 100uV

DC voltage

Range: 0 ～ 10V

Basic accuracy: 0.2%+4dgt

Resolution: 10mV

DC current

Range: 0~22mA

Basic accuracy: 0.2%+4dgt

Resolution: 0.01mA

Sink current

Range: 0~22mA

Basic accuracy: 0.2%+4dgt

Resolution: 0.01mA

External power supply: 5 ～ 28V

Thermocouple

Range: 8 types(R/S/K/E/J/T/B/N)

Basic accuracy: 0.2%+4dgt

Resolution: 1℃

MEASURE

DC millivolt Range: -10~110mV

Basic accuracy: 0.2%+4dgt

Resolution: 100uV

DC voltage

Range: -5~30V

Basic accuracy: 0.2%+4dgt

Resolution: 10mV

DC current

Range: 0~22mA

Basic accuracy: 0.2%+4dgt

Resolution: 0.01mA

Loop power

Range: 24V

Basic accuracy: 10%

Limit current: 25mA

Thermocouple

Range: 8 types(R/S/K/E/J/T/B/N)

Basic accuracy: 0.2%+4dgt

Resolution: 1℃
