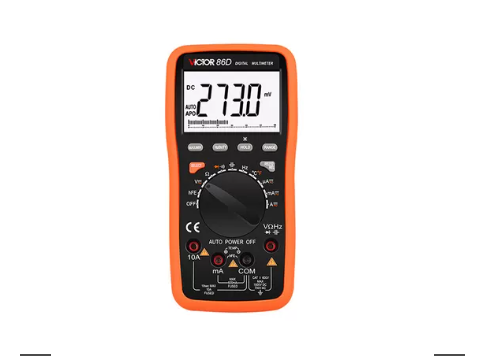

VICTOR 86D Digital Multimeter (1000VDC, 750VAC, 10ADC/VC)

DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+4)

AC Voltage: 6V/60V/600V/750V ±(0.8%+10)

DC Current: 600uA/6000uA /60mA/600mA/6A/10A ±(1.2%+10)

AC Current: 600uA/6000uA /60mA/600mA/6A/10A ±(1.5%+10)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+4)

Capacitance: 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)

Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+15)

Temperature/Celsius: (-20 ~ 1000) ℃ /(0~1832) ℉ ±(1.5%+15)

Special Function

Diode test √

Transistor test √

Continuity buzzer √

Low battery indication √

Data hold √

Auto power off √

Bar graph display 61 segment(30times/s)

RS232 interface jack √

Max./ Min √

Function protection √

Shockproof protection √

Frequency /duty cycle: 0.1%~99.9%

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC Frequency response: (40-400)Hz

Operation way: Manual/Auto range

Max. display: 5999

LCD Size: 70×50mm

Power: 1.5*2

General Characters

Product Net Weight: Approx.410g (including battery)

Standard Accessories: Test leads; battery; instruction manual TP01 temperature probe; Holster
