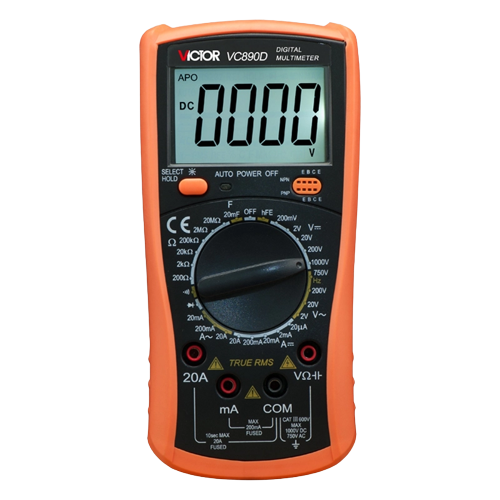

VICTOR VC890D Digital Multimeter (1000V/750V DC/AC, 20A)

DC Voltage

Range: 200mV/2V/20V/200V/1000V

Accuracy: ±(0.5%+3)

AC Voltage

Range: 2V/20V/200V/750V

Accuracy:±(0.8%+5)

DC Current

Range:20uA/2mA/200mA/20A, 200uA/20mA/200mA/20A

Accuracy:±(0.8%+10)

AC Current

Range: 2mA/200mA/20A, 20mA/200mA/20A

Accuracy: ±(1.0%+15)

Resistance

Range: 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ, 200Ω/2kΩ/20kΩ/200kΩ/20MΩ

Accuracy: ±(0.8%+3)

Capacitance

Range: 20nF/2uF/200uF

Accuracy:±(2.5%+20)

Celsius: (-40~1000)°C

Diode: √

Transistor: √

Continuity buzzer: √

Low battery indication: √

Data Hold: √

Auto power off: √

Function protection: √

Restorable fuse protection: √

Shockproof protection: √

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC Frequency response: 40~400Hz

Operation way: Manual range

Max. Display: 1999

LCD size: 55×43mm

Battery: 9V (6F22)

Product color: Case: dark gray; Holster color  : yellow

Net Weight: Approx:270g

Dimension: 168×87×47mm

Standard Accessories: Test leads/batteryinstruction manual/TP01, temperature probe(with temperature function)/Testing accessories
