Vishay General Semiconductor 1.5KE9.1A-E3/54 TVS Diodes 1500W 9.1V Unidirect
Manufacturer: Vishay General Semiconductor Model: 1.5KE9.1A-E3/54 - Contact
Polarity: Unidirectional
Unit Weight: 1 g
REACH - SVHC: Details
Working Voltage: 7.78 V
Clamping Voltage: 13.4 V
Breakdown Voltage: 8.65 V

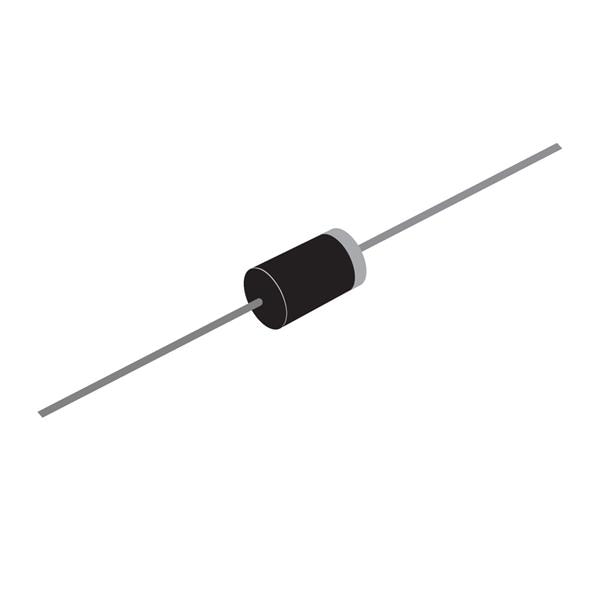

Termination Style: Axial
Number of Channels: 1 Channel
Vf - Forward Voltage: 3.5 V
Pd - Power Dissipation: 6.5 W
Ipp - Peak Pulse Current: 112 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Pppm - Peak Pulse Power Dissipation: 1.5 kW
