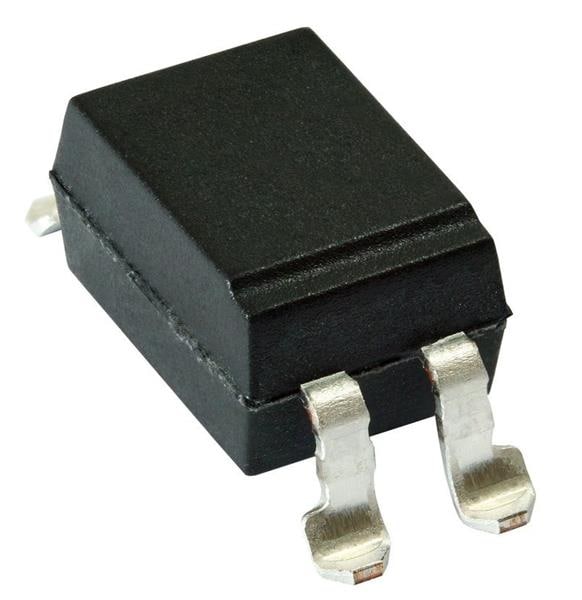

Vishay General Semiconductor SFH615A-2X019T Transistor Output Optocouplers RECOMMENDED ALT VO61
Manufacturer: Vishay General Semiconductor Model: SFH615A-2X019T - Contact
Width: 6.81 mm
Height: 3.81 mm
Length: 4.83 mm
Fall Time: 14 us
Rise Time: 3 us
Output Type: NPN Phototransistor
Unit Weight: 90 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5300 Vrms
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.65 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 63 %
Pd - Power Dissipation: 150 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 125 %
Current Transfer Ratio - Min: 63 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Emitter Saturation Voltage: 400 mV
