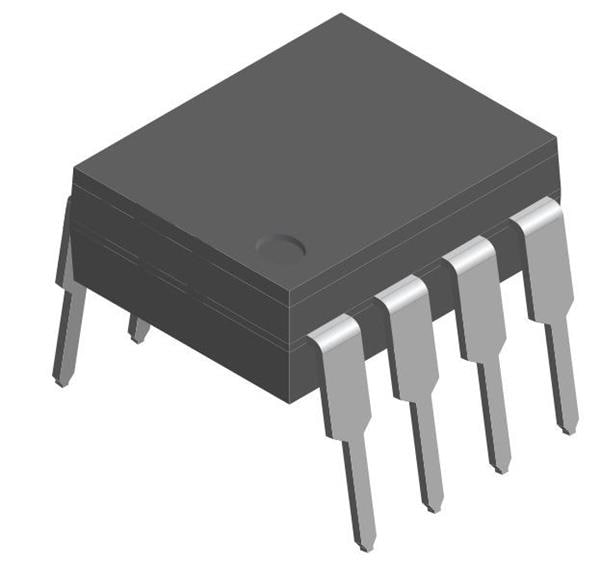

Vishay General Semiconductor VOW3120 Half-Bridge WDIP-8 IGBT MOSFET DRIVER 2.5A -E3

Shutdown: No Shutdown

Fall Time: 100 ns

Rise Time: 100 ns

Technology: Si

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 2.5 A

Output Voltage: 0 V to 32 V

Isolation Voltage: 5300 Vrms

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Number of Channels: 1 Channel

Input Voltage - Max: 32 V

Input Voltage - Min: 15 V

If - Forward Current: 25 mA

Supply Voltage - Max: 32 V

Supply Voltage - Min: 15 V

Vf - Forward Voltage: 1.36 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 260 mW

Operating Supply Current: 2.5 mA

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
