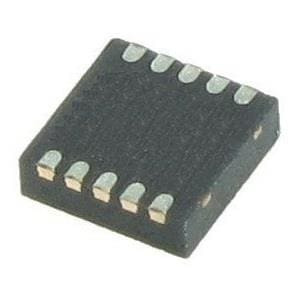

Vishay Siliconix SIP32419DN-T1-GE4 Load Switch 56mOhm 28volt Smart Load Switch
Manufacturer: Vishay Siliconix Model: SIP32419DN-T1-GE4 - Contact
Unit Weight: 50 mg
Current Limit: 750 mA to 3.5 A
On Time - Max: 550 us
Mounting Style: SMD/SMT
Off Time - Max: 1 us
Output Current: 4.5 A
Number of Outputs: 1 Output
On Resistance - Max: 56 mOhms
Supply Voltage - Max: 28 V
Supply Voltage - Min: 6 V
Pd - Power Dissipation: 1.42 W
Operating Supply Voltage: 6 V to 28 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
