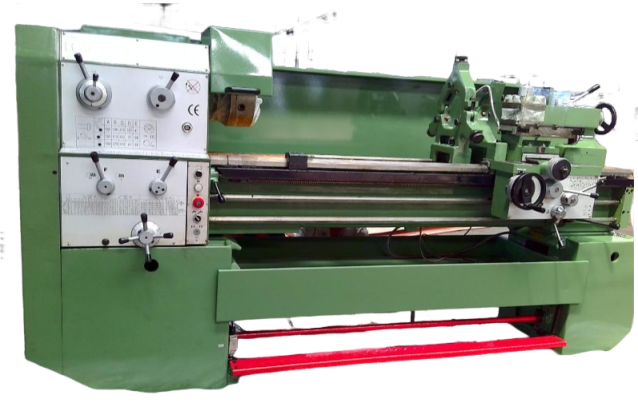

WMT CNC CD6260Bx1000 Lathe machine

Max.swing over bed:Φ600mm

Max. swing over cross slide: Ø360 mm

Max. swing over gap: Ø730 mm

Effective length of gap: 260 mm

Center distance: 1000 mm

Bed width: 330 mm

Spindle bore: B: Ø65 mm, C: Ø80 mm

Spindle nose: B: ISO-D6, C: ISO-D8

Spindle speed (number):

B: 20–1800 rpm (15 steps)

C: 24–1600 rpm (15 steps)

Longitudinal feeds range:

66 kinds: 0.072–4.038 mm/rev (0.0027–0.15 inch/rev)

Cross feeds range:

66 kinds: 0.036–2.019 mm/rev (0.0013–0.075 inch/rev)

Metric threads range: 66 kinds, 0.5–28 mm

Inch threads range: 66 kinds, 1–56 inch

Module threads range: 33 kinds, 0.5–3.5 m

Diametric pitch threads range: 33 kinds, 8–56 D.P

Max. travel of top slide: 130 mm

Max. travel of cross slide: 300 mm

Max. size of tool shank: 20×20 mm / 25×25 mm

Diameter of tailstock sleeve: Ø65 mm

Taper of tailstock sleeve: MT5

Max. travel of tailstock: 120 mm

Main drive motor: 5.5 kW or 7.5 kW

Rapid traverse motor: 250 W

Coolant pump motor: 125 W
