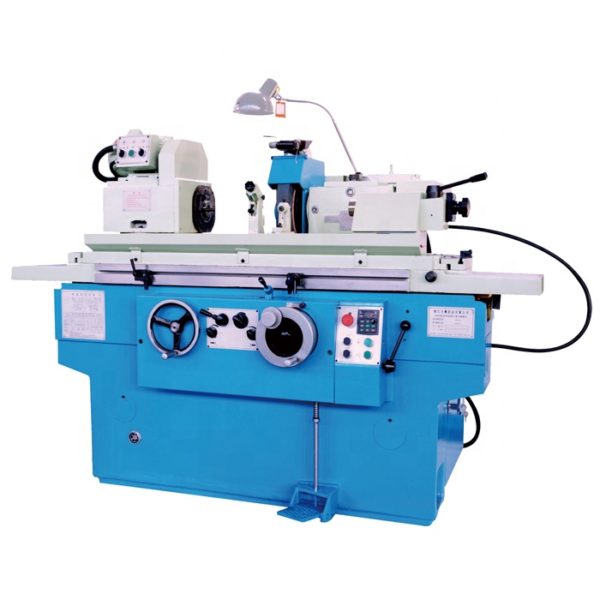

WMT CNC M1420H/FX800 Cylindrical Grinding Machine (5.625kW)
Manufacturer: WMT CNC Model: M1420H/FX800 Guarantee: 12 Month - Contact
External grinding diameters: φ8～200mm
Internal grinding diameters: φ13～100mm
Center height: 135mm
Headstock spindle rotation speed: 50HZ:25～380rpm (stepless)
Max. worktable traverse: 950mm
Hydraulic travel speed: 0.1～4m/min
Max.workpiece weight: 50kgs
Grinding length External/Internal: 800/125mm
Swivel range of worktable: -3°～+7°
Max.wheel peripheral speed: 38m/s
External wheel size: Max.φ400x50xφ203mm, Minφ280x50xφ203mm
Internal wheel spindle rotating-speed: 20000r/min
Headstock and tailstock center: MT4
Total motor power: 5.625kW
Machine overall dimension（LxWxH）: 3000x1600x1500mm
Machine weight: 3000kg
