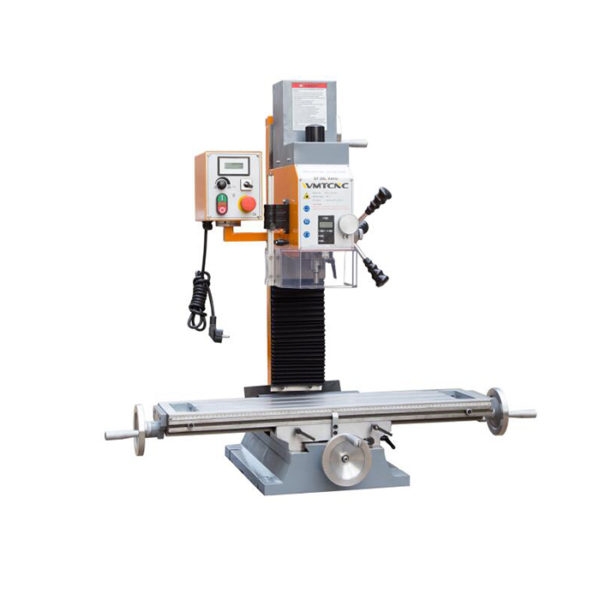

WMT CNC ZAY7030V Milling and Drilling Machine (900W)
Manufacturer: WMT CNC Model: ZAY7030V Guarantee: 12 Month - Contact
Max. drilling capacity: 30mm
Max. face mill capacity: 70mm
Max. end mill capacity: 30mm
Max. distance spindle to table: 370mm
Working table size: 840 x 210mm
Swivel angle of headstock: ±45 °
Spindle taper: MT3
Spindle speed: 100-2500rpm
Sleeve stroke: 70mm
X-axis travel: 570mm
Y-axis travel: 200mm
Z-axis travel: 350mm
Motor power: 900W
N.W/G.W: 220/260kgs
Packing size (LxWxH): 870x630x1000mm
