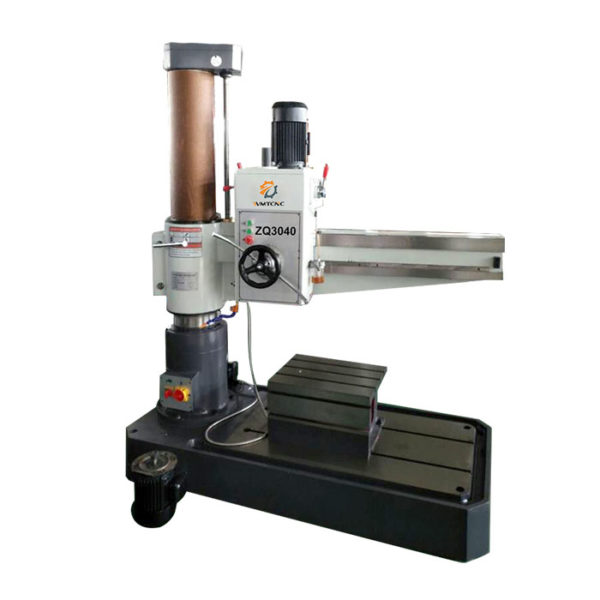

Max Drilling Diameter: steel 32 /iron 40mm
Column dia: 280mm
Spindle center to column: 300-1300mm
Spindle box travel: 1000mm
Spindle nose to table: 250–1200mm
Arm lifting travel: 670mm
Spindle travel: 270mm
Spindle taper: 4 Morse
Spindle speed range: 75/130/240/380/660/1220r/min
Spindle speeds series: 0.10/0.16/0.25
Arm lifting speed: 1.3mm/r
Radial rotation Angle: 360°
Main motor power: 2.2kW
Lifting Motor Power: 0.55kW
Coolant motor power: 0.04kW
Machine weight: 2000kg
Machine overall size (L*W*H mm): 2000×800×2240mm
