Application: For Die Casting Operation
Die Casting Machine Tonnage: 1000ton
Capacity: 1000kg*2
Melting rate: Above 500 kg / HR
Common temperature: 650℃-850℃
Combustion engine power: 400000 kcal * 2
Rated voltage: 380V/220V
Empty furnace heating time: ＜2HR
Temperature control accuracy: ± 5 ℃ (at aluminum liquid holding stage)
Overall dimension: Attached overall dimensions
Crucible size: 855mm high, 1050mm diameter
Weight of electric furnace: 6200kg (including rotating base)
Operating power supply: 220V 50Hz
1. Product model description
Product model: wdl-rhx-1000

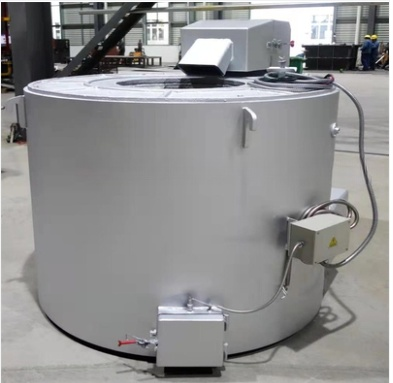

Name: rotary gas melting and holding furnace
2. General description of furnace
The equipment is composed of two furnace bodies and a rotating plate.
The technical parameters of the left and right furnace bodies are the same,
and the melting and holding function is performed alternately by rotation.
2.1 Steel structure
The furnace shell is made of steel plate and section steel, and the thickness
of steel plate is 6mm. The furnace cover plate is made of cast iron.
2.2 Lining composition
The melting pool part is integrally cast at one time. This material has the
characteristics of high strength and long service life.(compressive strength:
140MPa above 110 ℃, while the linear change rate is only 0.1%). The thermal
insulation layer is built with first-class aluminum silicate fiberboard and light brick.
Add a layer of 25mm thick Unithermal refractory plate.
2.3 combustion system
Japanese brand gas burner is selected. Simple operation and maintenance,
long service life, temperature control, automatic ignition and flame monitoring.
When the set temperature is reached, the combustion machine stops combustion.
When the temperature in the furnace is lower than the lower limit of the set temperature,
the burner automatically burns.
