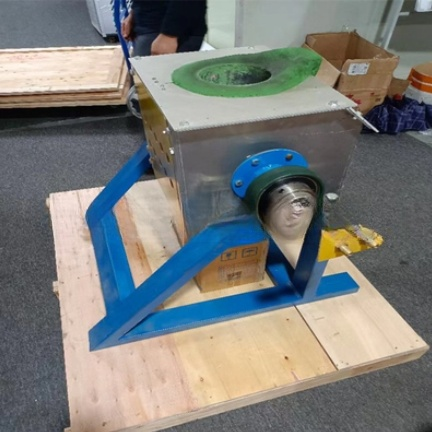

Wondery WDL-ZP-110KW Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type (110 kW; 50 kg)

ManufacturerWondery(View more products from this manufacturer)

ModelWDL-ZP-110KW

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Application

The electric induction melting furnace can be used to melt cast iron or steel with a max temperature of 1900 degree celcius. The medium inducton melting furnace is of tilting type. The furnace takes a small size, and is very convenient in operation. The electric metal melting furnace has alarm function and fault detection function, such as fault state protection and display including overcurrent, overvoltage and water shortage, etc.

Specifications

Energy: Electric Induction

Working Power: 110KW

Input voltage range: 70V-550V

Output oscillation frequency: 1-20KHZ

Output current: 30-200A

Weight:

+ Main machine: 80kg;

+ Control cabinet: 65kg

Dimension:

+ Furnace: 1050*790*1200mm (L*W*H);

+ Power supply: 820*420*890mm (L*W*H);

+ Control cabinet: 550*400*510mm (L*W*H)

Capacity: 50KG cast iron

Crucible Type: Graphite

Max temperature: 2000 Degree Celcius (hearth)

Cooling type: Water cooling

Cooling water requirement: ≥0.3Mpa; ≥20L/min

Supply scope:

Heating power source, 1 set;

Foot switch, 1 pc;

Connection wire 2pcs; single wire 1 pc;

Electric induction melting furnace body 1set; flexible connection cable 2pcs;

Protective cap 1 set; protective gloves 1 pair;

User manual 1 copy;

4. Features

4.1 The main power devices of the electric induction melting furnace are all German Siemens brands,

and the main electronic components are imported products (Motorola (diode), NEC (triode), ST

(three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have higher

reliability and durability.

4.2 The electric induction metal melting furnace adopts IGBT power device and unique frequency

conversion technology to operate stably and provide higher reliability and durability. It has the

function of constant current and constant power control, which greatly optimizes the metal heating

process, realizes efficient and fast heating, and gives full play to the advantages of the product.

Under the same conditions, it has twice the power saving than the traditional SCR medium frequency.

4.3 The metal induction melting furnace can be used to melt gold, copper, aluminum, steel, zinc,

lead, stainless steel, etc.

4.4 The small metal induction melting furnace requires a small floor area, a light weight

and can be moved easily. The furnace can work continuously.
