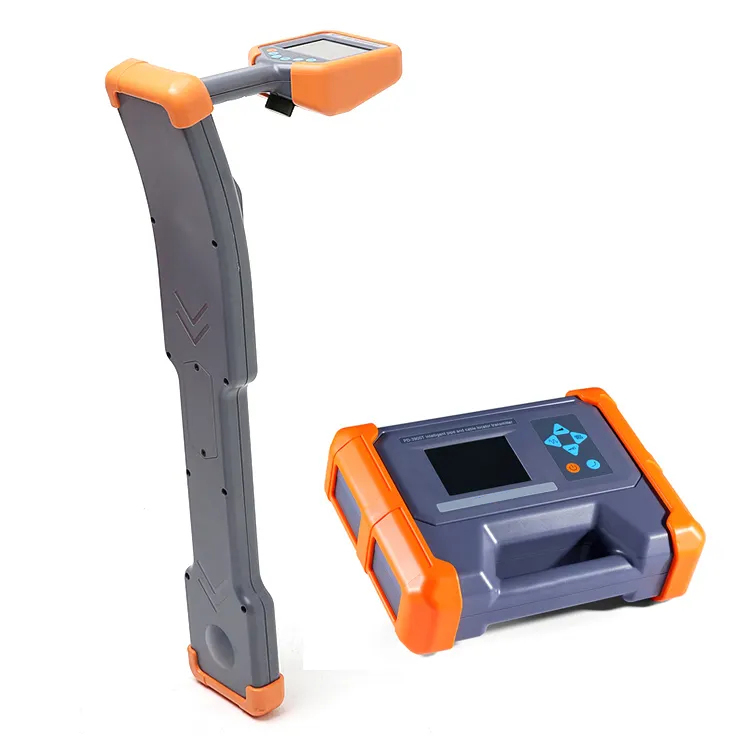

(1) Transmitter
Output mode: direct connection mode, clamp coupling mode, radiation mode
Output frequency: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
Output power: 15W Max, 10 levels adjustable
Impedance matching: full automatic.
Over voltage and over current protection: full automatic.
Human-machine interface: 320×240 LCD.
Power: Built-in Lithium battery group, nominal 7.4V, > 6AH
External dimensions: 280mm×220mm×90mm.
Weight: 2.3 kg
Operating conditions: temperature:-25℃ ~ 60℃, humidity <90%RH, altitude <4500m
(2) Receiver
Receiver mode: direct connection mode, clamp coupling mode, radiation mode
Detection mode: wide peak, narrow peak, valley value, historical curve, frequency spectrum
Active frequency: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz.
Passive frequency: 50/60Hz power frequency, 4 ~ 24kHz radio frequency.
Human-machine interface: 320×240 LCD, sunlight readable
Built-in lithium ion battery pack, nominal 7.4V, > 3Ah.
External dimensions: 680mm×120mm×277mm.
Weight: 2.0 kg
Operating conditions: temperature:-25℃ ~ 60℃, humidity <90%RH, altitude <4500m
