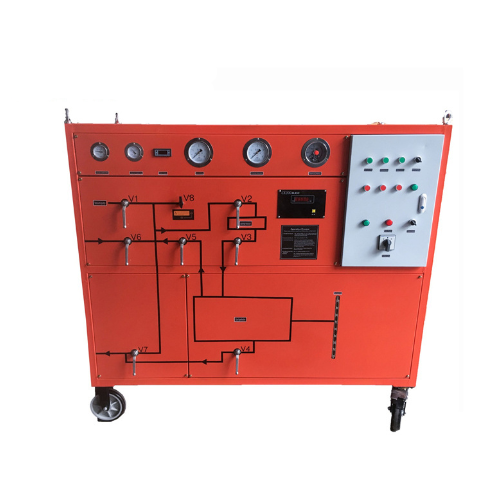

Wrindu RDQH-60-200-3 SF6 Gas Recovery And Purification Unit 3 (0~1,0 MPa)
Manufacturer: Wrindu Model: RDQH-60-200-3 - Contact
Power AC: 380V (phase sequence automatic conversion), 50Hz
Rated maximum gas storage pressure (20 ℃) (MPa): ≤4
Device vacuum maintenance: When the pressure is maintained at 133 Pa for 24 hours, the vacuum value rises < 400 Pa
SF6 compressor: Maneurop
Vacuum pump: Direct coupled pump
Recovery device adapts to inlet initial pressure (20 ℃) (MPa): 0~1.0
Final recovery pressure of electrical equipment (20 ℃) (kPa): ≤50
Gas oil control after recovery (μg/g): Domestic oil content < 10
Annual air leakage rate of unit (%): < 1
Continuous trouble free operation time of the device (h): ≥1000
Accumulated trouble free operation time (h): ≥5000
noise level (dB): The whole machine is less than 75.
Theoretical storage capacity (kg): 200
Refrigeration liquefaction compressor: Maneurop
Gas moisture after recovery (PPM/V): 60
Gas oil after recovery (PPM/V): 10
Dry filtration method: Vacuum heating activation regeneration
Initial pressure of inflation (Pa): ≤ 133
Inflation final pressure (MPa): 0.8
Gasification mode: Automatic temperature control of electric heating
Vehicle type: Hand push Mobile
Cooling mode: Air cooling
Product characteristics:
1. The built-in filtration and absorption system can absorb impurities, water, decomposition products and oil in SF6 gas.
2. Integrated design and small volume make it easy to move and use.
3. High efficiency filter maintenance free system, greatly ensuring the quality of SF6 gas recovery.
4. The built-in phase sequence protector can avoid the worry that the host will reverse due to phase sequence error at any time.
5. All electrical systems are with high quality brand.
6. High quality casters will greatly protect the ground paint and reduce the labor required for pushing.
7. The SF6 Gas Recovery device is air-cooled without external water source.
8. The built-in temperature protection system can work normally even at - 20 ℃.
9. The built-in drying and heating system can ensure that the desiccant can be activated and regenerated by equipment heating after saturation, so the desiccant does not need to be replaced.
10. All ball valves are sealed elements with automatic compensation performance.
11. Our SF6 Gas Recovery and Purification unit has built-in electromagnetic valve power-off protection function, to prevent vacuum pump power-off or motor seizure return oil.
Main component parameters:
Name | Name | Company | Specifications and parameters |
SF6 compressor Maneurop | Theoretical exhaust volume | m³/h | 19 |
Maximum discharge pressure | MPa | 2.5 | |
Allowable discharge pressure | MPa | 1.96 | |
Minimum allowable suction pressure | KPa | 53 | |
Maximum allowable suction pressure | MPa | 0.3 | |
Maximum exhaust temperature | ℃ | 130 | |
Lubricating oil | HD25 refrigerant oil | ||
power | kW | 3.7 | |
Power Supply | 380V, 50Hz | ||
Vacuum pump Direct coupled pump | Pumping rate | m³/h | 60 |
Extreme vacuum | Pa | ≤ 5*10-2 | |
Lubricating oil | Vacuum pump oil | ||
power | kW | 2.2 | |
Power Supply | 380V, 50Hz | ||
Maneurop refrigeration unit | Standard cooling capacity | W | 6100 |
Cryogen | R22 | ||
Maximum refrigerant charge | kg | 2.0 | |
Lubricating oil | HD25 refrigerant oil | ||
power | kW | 3.8 | |
Power Supply | 380V, 50Hz | ||
Gas storage tank | Container class | Two category | |
Design pressure | MPa | 4.0 | |
Design temperature | m³/h | 50 | |
Volume of storage container | L | 200 | |
Storage container storage capacity | kg | 200 |
