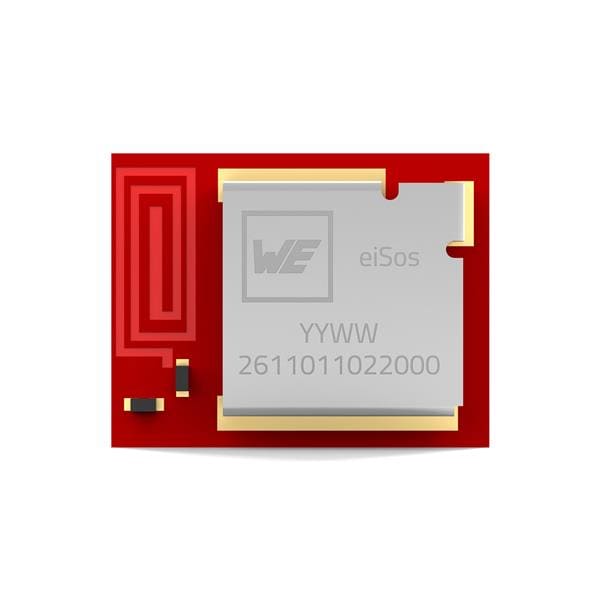

Wurth Elektronik 2611011022000 Radio Modules WIRL-NFW2 Ophelia-III Radio Module 2.4GHz module without FW, smart antenna configuration with RF shield
Manufacturer: Wurth Elektronik Model: 2611011022000 - Contact
Data Rate: 2000 kb/s
Frequency: 2.402 GHz to 2.48 GHz
Dimensions: 12 mm x 8 mm x 2 mm
Unit Weight: 310 mg
Antenna Type: Internal
Output Power: 6 dBm
Interface Type: GPIO, Serial
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Operating Supply Voltage: 1.8 V to 3.6 V
Supply Current Receiving: 7.7 mA
Supply Current Transmitting: 18.9 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
