Wurth Elektronik 686116183422 Board Mount WR-FPC SMT Horiztl 1mm Top Cont 16P | EMIN.COM.MM

FFC & FPC Connectors
Wurth Elektronik 686116183422 Board Mount WR-FPC SMT Horiztl 1mm Top Cont 16P

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

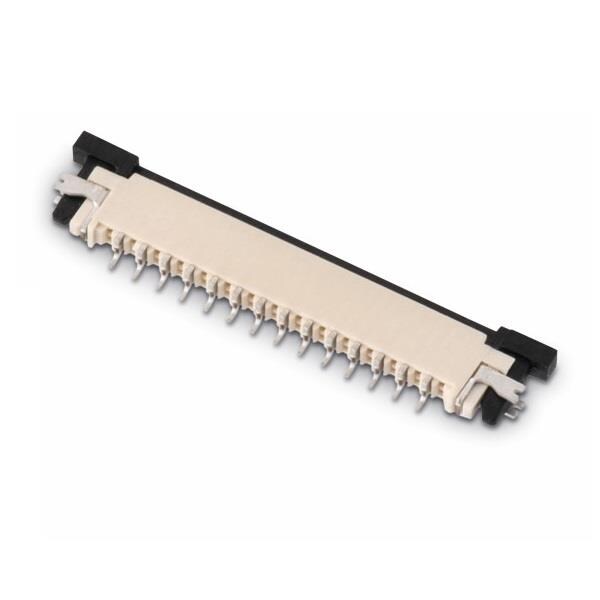

Product image

Wurth Elektronik 686116183422 Board Mount WR-FPC SMT Horiztl 1mm Top Cont 16P

ManufacturerWurth Elektronik(View more products from this manufacturer)

Model686116183422

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Pitch: 1 mm

Unit Weight: 110 mg

Housing Color: White

Actuation Type: ZIF

Current Rating: 800 mA

Mounting Angle: Horizontal

Mounting Style: SMD/SMT

Voltage Rating: 50 V

Contact Plating: Tin

Contact Location: Top Contact

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
