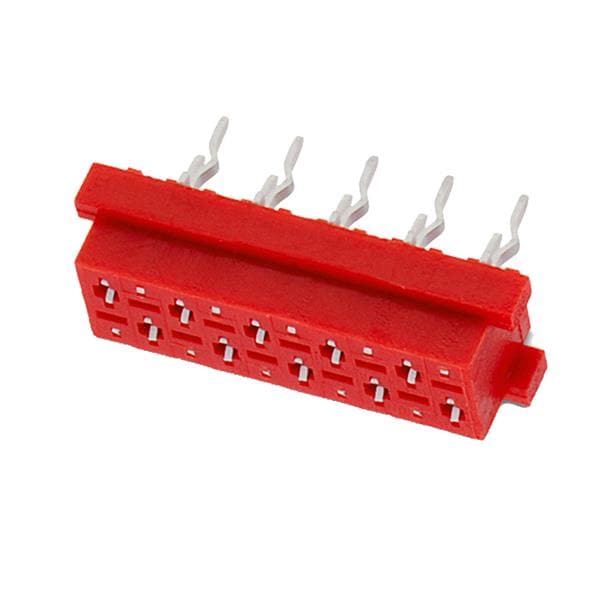

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 470 mg
Housing Color: Red
Latching Type: Unlatched
Contact Gender: Socket (Female)
Current Rating: 1.5 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 100 V
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 10 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3.1 mm (0.122 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
