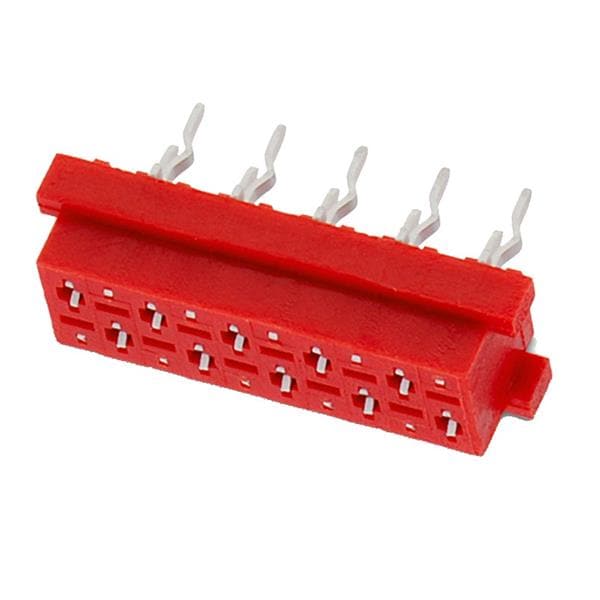

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 1.5 mm (0.059 in)
Unit Weight: 790 mg
Housing Color: Red
Contact Gender: Socket (Female)
Current Rating: 1.5 A
Mounting Angle: Straight
Mounting Style: Kinked Pin
Number of Rows: 2 Row
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 2.9 mm (0.114 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
