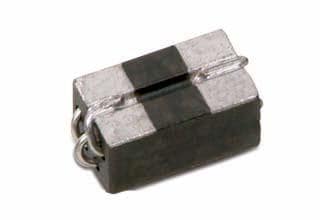

Wurth Elektronik 7427512 EMI Suppression 5 Hole Ferrite Bead WE-SUKW 5Hole 425Ohm 25MHz AEC-Q200
Manufacturer: Wurth Elektronik Model: 7427512 - Contact
Width: 5 mm
Height: 4.65 mm
Length: 8.5 mm
Impedance: 425 Ohms
Tolerance: 25 %
Unit Weight: 894 mg
Qualification: AEC-Q200
Test Frequency: 100 MHz
Termination Style: SMD/SMT
Maximum DC Current: 8.5 A
Number of Channels: 1 Channel
Number of Elements: 1 Element
Maximum DC Resistance: 12 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
