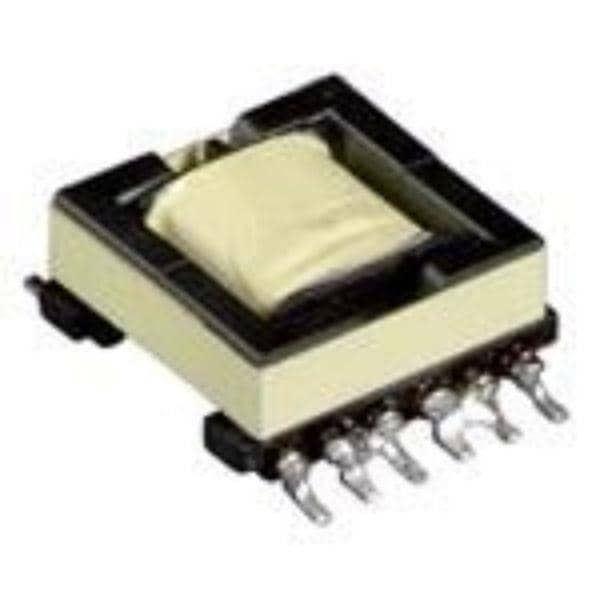

Wurth Elektronik 750310062 SMT Transformers WE-PoE Power over Ethernet Transformr
Manufacturer: Wurth Elektronik Model: 750310062 - Contact
Width: 13.34 mm
Height: 11.43 mm
Length: 15.24 mm
Inductance: 127 uH
Turns Ratio: 0.167361111
Unit Weight: 4.200 g
Power Rating: 10 W
Mounting Style: SMD/SMT
Primary Winding: Single Primary Winding
Secondary Winding: Single Secondary Winding
Termination Style: SMD/SMT
Operating Frequency: 250 kHz
Primary Voltage Rating: 36 V to 57 V
Secondary Current Rating: 2 A
Secondary Voltage Rating: 5 V
Operating Temperature Range: - 40 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
