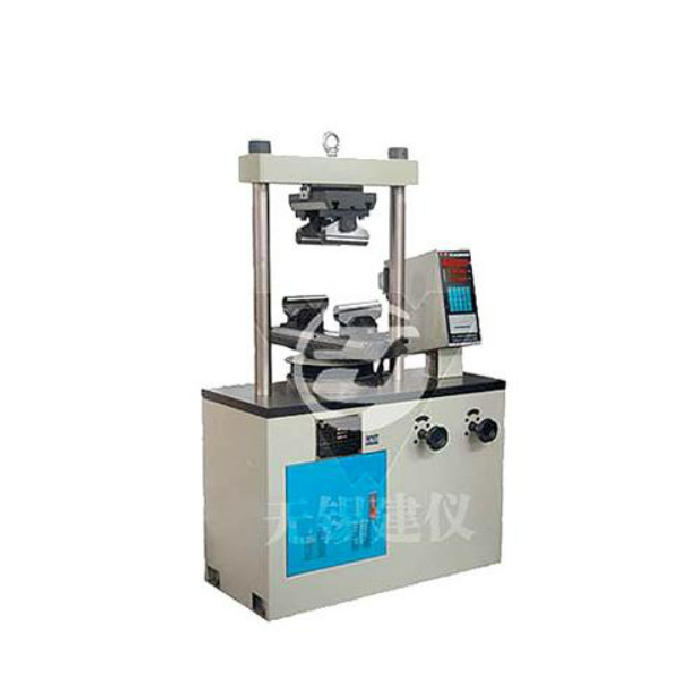

Wuxi TYE-100A Flexure and Compression Testing Machine (0-30kN/ 0-100kN)
Manufacturer: Wuxi Model: TYE-100A Origin: China - Contact
Purpose: It is used to measure the flexural strength of 150mm x 150mm x 600mm (or 550 mm) rectangular concrete test block, and it can also be used for testing the compressive strength of mortar test block and concrete rapid test.
The maximum load of the testing machine: 100kN.
Measuring range: 0-30kN/ 0-100kN
Bearing plate normalized: ￠100 mm
Net distance of pressure plate: 290mm.
Piston stroke: 110mm.
The diameter of the folding roller: 25mm.
Motor power: 0.55kw.380V.
Dimensions (length x width x height): 870 * 400 * 1400mm.
Material weight: 300 kg
