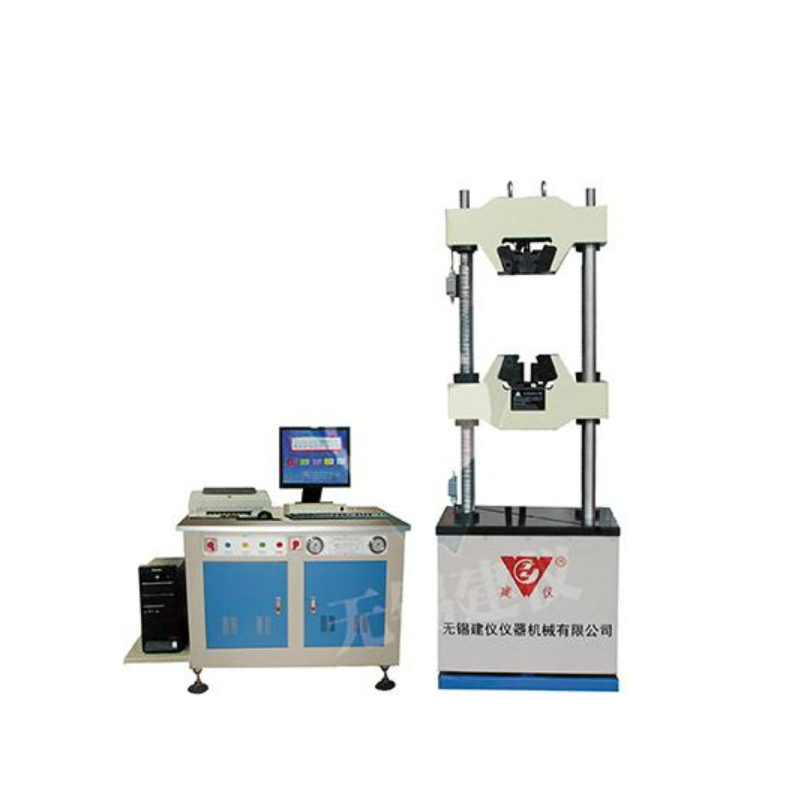

Maximum test force: 100kN
Measurement range: 2-100kN
Test force indicator accuracy: ±1%
Deformation measurement range: 1%～100%F·S
Deformation indicator accuracy: ±1%
Displacement indicator accuracy: ±1%
The maximum distance between upper and lower pressure plate: 540mm
The distance between the column: 340mm
Piston stroke: 150mm
Circular specimen clamping diameter: φ6～φ22mm
Flat specimen clamping diameter: 0~10mm
Upper-pressure plate size: Φ100mm
Under the pressure plate size: Φ100mm
Bend the maximum distance between the roller: 215mm
Power supply: 380V 50Hz 2.2kW
Mainframe size: 650×500×1894mm
Measuring force system size: 1100×680×800mm
Net weight: 1800kg
For metal material tensile, compression, shear and bending test, deserve to go up suitable fixture, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008.Meet GB/T228.1-2010, GB/ t232-2010.
