Maximum test force: 2000kN
Test force measurement range: 80～2000kN
Maximum distance between stretching clamps (including piston stroke) 700
Maximum distance between upper and lower pressure plates (including piston stroke): 600mm
Distance between columns: 580mm
Maximum piston stroke: 250mm
Circle sample clamping range: φ20 ～φ40mm/ φ40 ～φ70mm
Flat sample clamping range: 10 ～50mm
Total power: About 5kW
Main frame size: 1200×850×2900mm
Dimensions of measurement and control box: 1100×680×800mm
Net weight: About 5400kg

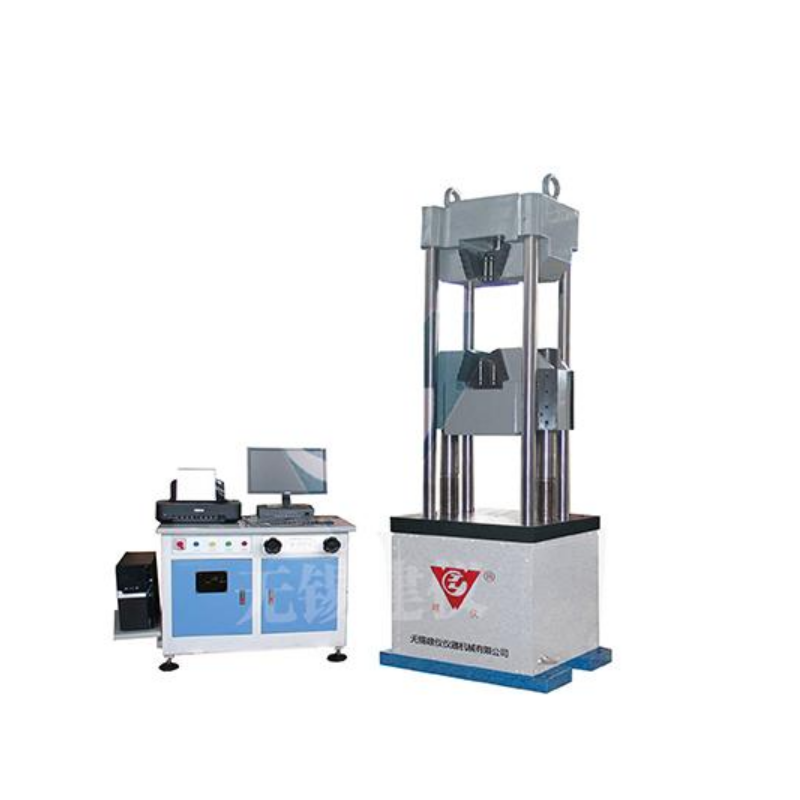

Used in metal material tensile, compression, shear and bending test, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008.Meet GB/T228.1-2010, GB/ t232-2010.
