Max Measurement Force: 6000CN
Linear Deviation: 0.0005
Load Cell Accuracy Class: 0.0005
Gauge Length: 250mm±1mm,500mm±1mm
Pretension: 1cN-100cN
Elongation: when at 250mm gauge length, max elongation is 220%; when at 500mm gauge length, max elongation is 60%
Accuracy: Within ±0.5% of applied force
Tensile Speed: 20mm/min-1500mm/min
Tex: 1-999.9 random setting
Pretension: 1cN-100cN
Power: AC220V 50Hz
Dimension: 320mm×360mm×1160mm
Weight: 45kg
Product Description:

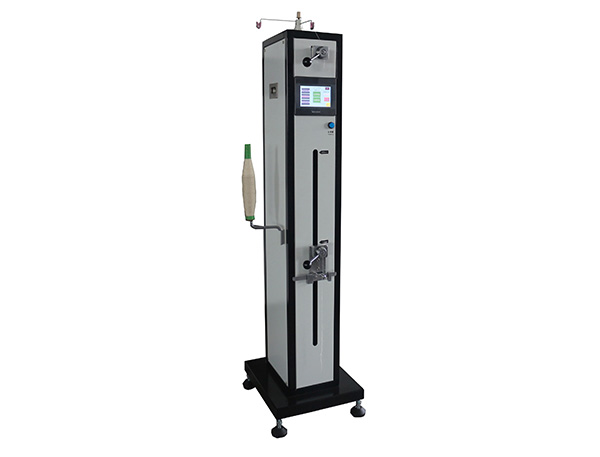

XHL-02C Single Yarn Strength Tester is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament.. etc.
Test Standards
GB/T 391, GB/T 14344, ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.
Product Features
1. Working pattern: CRE principle, controlled by color touch screen.
2. Touch screen can record, browse detail results and print results by printer
3. Fully programmable to give breaking load, elongation, elongation rate, breaking time, CV%, AV.
4. Two methods: constant break time and constant speed test method.
5. With memory function when power interrupt, and up to 100 tests on each sample.
6. The machine adopts contactless relay, stable performance, reliable
7. Gauge length and tension speed pre-settable
8. Able to set pretension force
