Max Measurement Force: 6000CN
Linear Deviation: 0.0005
Load Cell Accuracy Class: 0.0005
Gauge Length: 250mm±1mm,500mm±1mm
Pretension: 1cN-100cN
Elongation: when at 250mm gauge length, max elongation is 220%; when at 500mm gauge length, max elongation is 60%
Accuracy: Within ±1% of applied force
Tensile Speed: 50mm/min-5000mm/min
Tex: 1-999.9 random setting
Working Pressure: 0.4Mpa-0.8Mpa
Power: AC110/220V 50/60Hz
Dimension: 1295mm×550mm×450mm
Weight: 140kg
Product Description

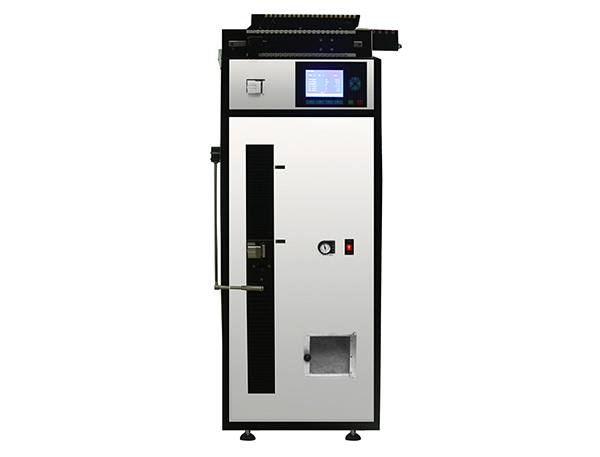

XHL-02F Fully automatic yarn tensile strength tester is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament etc.
Test Standards: ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.
Product Features:
1. Working pattern: CRE principle, controlled by both computer and LCD display, professional software supports.
2. Large LCD can record, browse detail results and print results by printer
3. Fully programmable to give breaking load, elongation, CV% of load, elongation, stress, strain curve and tenacity values..etc.
4. Time fixing tensile: 10s or 20s
5. With memory function when power interrupt, and up to 999 tests on each sample:
6. The machine adopts contactless relay, stable performance, reliable
7. Gauge length and tension speed pre-settable
8. Able to set pretension force
9. Dual control, can use computer control, also can use large panel controller control without PC, for PC, output report as BMP, WORD, EXCEL ..etc directly.
10. Use American Celtron load cell and Servo motor, low friction ball bearing screw
11. Automatic sample loading from the cops as program.
12. Automatic zero-setting after each test.
13. Pneumatic Gripping, the clamp force can be adjusted, no destroy the yarn.
14. Creel for robbions, can test 20 pcs cops at the same time.
15. Force and elongation can be measured at any point of the curve
16. Force reading can be selected either in Newton, gram, CN or LB
17. Elongation reading can be selected either in or mm
18. Have waste box.
19. Yarn winding will not occur because of professional lower gripper design.
