Capacity: 10KN
Force Test Range: 0.2%-100% F.S (0.4%-100% F.S)
Force Test Accuracy: Better than +/-0.5% of indication value
Strength Resolution: +/-1/500000
Displacement Resolution: 0.04um
Deformation Error: +/-0.5%
Test Speed Range: 0.01mm-500mm/min
Main Frame Type: Double Column
Tension Space: 600mm
Compression Space: 700mm
Test Width: 400mm
Power Supply: 110/220V, 50/60Hz
Dimension: 780x570x1800mm
Weight: 450Kg
Product Description:

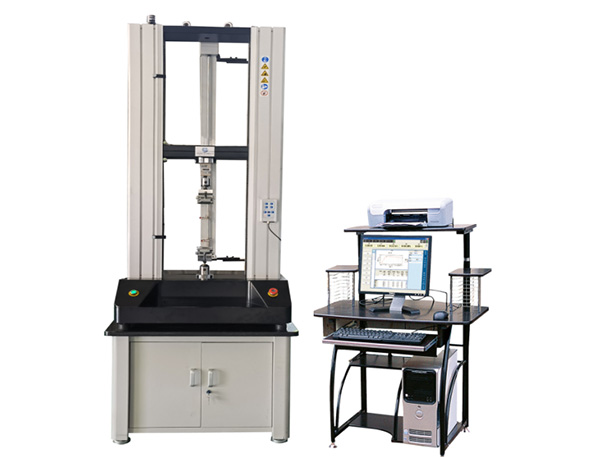

XHL-04 Computer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
The machine conform to ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, DIN 51221 Class1
Test Standards: ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.
Product Features
Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control
Modern linear guide technology, pre-loaded ball screws and advanced software.
Aluminum Alloy Cover make machine looks beautiful .
Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.
Built-in of test methods meeting international test standards.
Pre-load test standards for ASTM standard and ISO standard for foam test
All test procedure is carried out easily with our professional software
Test automation and batch testing
Test creation is provided by software
Multi points load is calibrated to ensure calibration is accurate
History track function easy to track previous test results according to date, name..etc
Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000
Adopt high precision load cell to keep measurement more accurate and stable.
Automatically detection of the adjustment and calibration by electronic system and software.
Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000
With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop
Test results can be directly output, or via bmp, excel, txt...etc
Cables Connection is very simple
