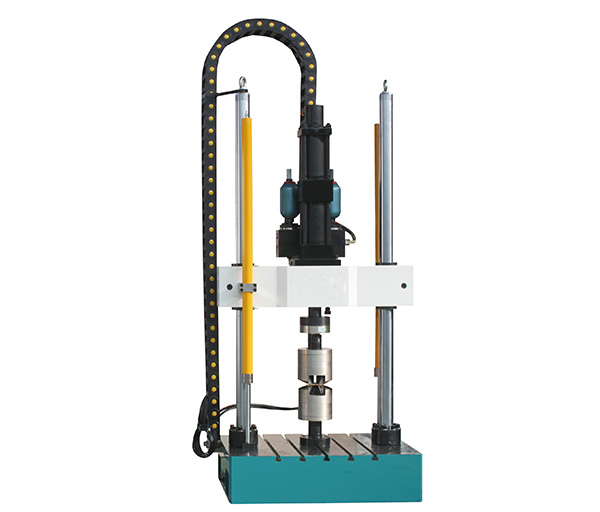

XHinstruments XHL-05Q-10 Universal Servo Dynamic Fatigue Testing Machine (100KN)
Manufacturer: XHinstruments Model: XHL-05Q-10 - Contact
Capacity:
Static: 100KN
Dynamic: ±100kN
Test Force Accuracy: Better than ±1% of indication value (±0.5%) within 2%-100%
Actuator Displacement: 150mm (other upon request)
Coaxality With Load: Better than ±5%
Range Of Frequency: 0.01-50Hz
Distance between Cloumns: 640mm
Vertical Test Space: 800mm
Product Description:
The Dynamic Fatigue Testing Machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth tests and othermechanics tests for various kinds of materials.
Test Standards: ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.
Product Features:
The Dynamic Fatigue Testing Machine adopts the international advanced dynamic electro-hydraulic servo test system and the Basic Test Ware software +MPT (Multipurpose Test Ware) software of the United States MTS company. The stability and reliability of the system are improved by means of unit, standardization and modular design. The key units and components of the system are manufactured by advanced international technology. The overall performance of the test system is equivalent to that of the famous international Testing Machines Inc
