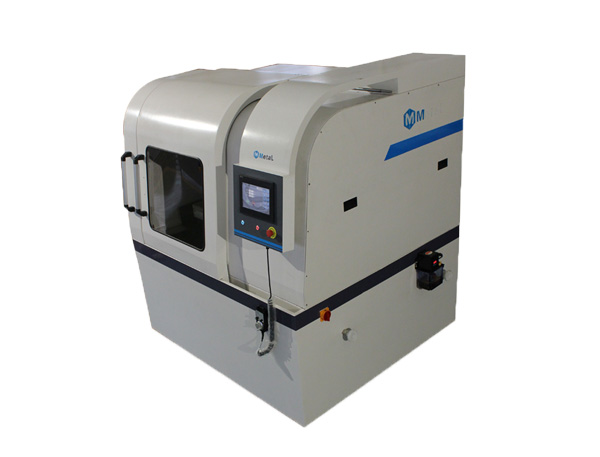

XHinstruments XHL-23 Metallographic Cutting Machine (0-2600r/min)
Manufacturer: XHinstruments Model: XHL-23 - Contact
Input voltage: 380V 50HZ
Spindle speed: 0-2600r/min
Cutting: Manual/Automatic
Cutting capacity(Max): Φ170mm
Max Table Moving Distance: X: 150mm Y: 750mm Z: 290mm
Cut-off wheel: Φ500×4×32mm
Cutting motor: 7.5kw
Table Dimension: 600mm×800mm
Dimension: 1850×1650×1900mm
Weight: 2500Kgs
Automatic metallographic sample cutting machine is a large automatic cutting machine, using PLC with a very high reliability, strong control ability; in human-computer interaction using a touch screen; the control adopts high precision stepper motor; it is suitable for cutting various metal specimens. Metal materials, in order to observe the metallographic, petrographic tissue. The machine cutting process automation with low noise,simple operation, safe and reliable, is one of the important equipment in modern laboratory production of solid material samples.
