Measurement range: 0-4mm
Resolution: 0.001mm
Accuracy: ±0.0025mm or ±0.5%
Parallel: ≤0.001mm
Touch Pressure: (100±10)kPa adjustable
Touch Area: (200±5)mm²
Dimension: 330mm×340mm×350mm
Weight: 25kgs
Power: 110V/220V, 50Hz/60Hz
Product Description:

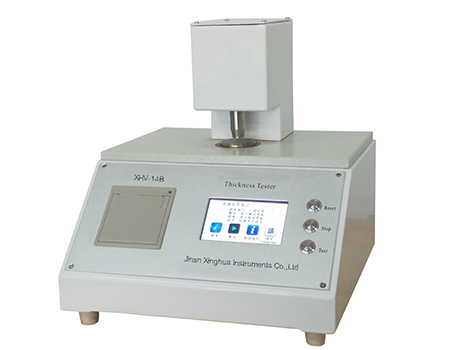

XHV-14B Automatic Paper Thickness tester is used to test the thickness of paper, cardboard. It's the essential equipment for the paper and package manufactory, research and inspection department .
Test Standards: ISO534, GB/T451.3, ISO3034, GB/T6547, QB/T1055
Product Features:
1.Adopt high precision load sensor, the accuracy of force can be controlled better than 1%, usually we control it within 0.5% out of factory.
2. Precision ball screw transmission, Aluminum-alloy control panel, reasonable design for upper and lower stainlesss steel plate.
3. Touchscreen operation system, automatic complete operation, has statistics function. Micro-printer, fast and clear printing. Can be connected to PC, save, output results and graphs with our professional software.
4.High performance stepless motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.
5.Professional calibration procedure, user can calibrate the machine easily.
