Parameters: Tested Result/Mean Value/Max.Value
Indenter: Ball 10mmΦ
Convertible Probe: The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application: For closely wound bobbins of synthetic, finished fibers and filaments
Display Range: 0-100H (hardness graduation marks)
Testing Range: 10-90H (hardness graduation marks)
Resolution: 0.1H
Accuracy: ≤±1H
Battery Indicator: Low Battery Indicator
Auto Switch Off: √
Depth Of Indentation*: 0-2.5mm
Test Pressure**: Approx. 12.5N
Measuring Spring Force*: 0.55-8.065N
Scale Diameter: 51mm
Working Face Radius: 55mm (when using the curved end of the probe)
Working Face Flat: 45mmΦ (when using the plane end of the probe)
Operating: Temperature:0~40ºC Humidity:<80%RH
Power Supply: 2x1.5V AAA(UM-4)Battery
Dimensions: 177x65x45mm
Weight: Approx. 285g (Not including batteries)
Standard Accessories: Main Unit; Carrying Case; Operation Manual
Optional Accessories: USB Data Cable with Software; Bluetooth Data Adapter with Software
Product Description:

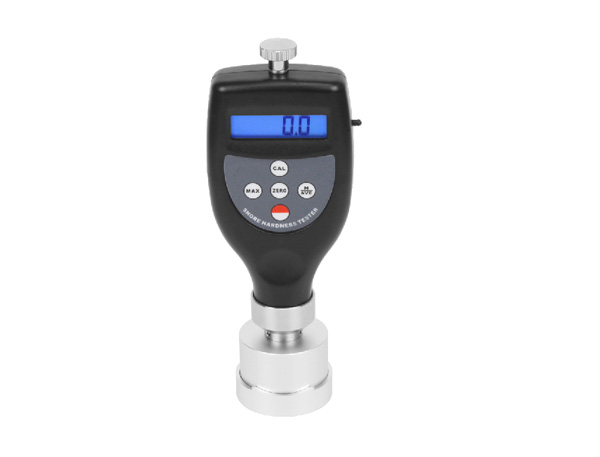

XHX-07 Yarn Hardness Tester is used to measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
Principle:
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Product Features
* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
