Range : Range :0-100CN (0-100g), 0-200CN (0-200g), 0-500CN
(0-500g), 0-1000CN (0-1000g) (select one)
Resolution : 0.1CN at range 100CN and 200CN, 1CN at range 500CN and 1000CN
Accuracy: ±1% full scale
Units: cN
Outrange: approx 10% full scale without accuracy guarantee
Overload protection: 200% of tension range
Measuring principle: Strain gauge bridge
Signal processing: Digital 10 bit ADC
Damping: Adjustable electronic damp; (10 steps)．moving averaging
Sampling rate: approx 1 kHz
Display update rate: approximate 2 times/sec
Display: 4-digit LCD,12.7 mm high
Temperature range: 10—45℃
Air humidity: 85% RH．Max
Auto power off: automatically after approx 3 min of non—use
Power supply: Two AA Battery (about 50 hours of continuous use)
Housing material: Aluminum profile with outer casing
Housing: 230 X 62 x 46 mm (D x W x H)
Weight net (gross): approximate 350 g (1020 g)
Product Description:

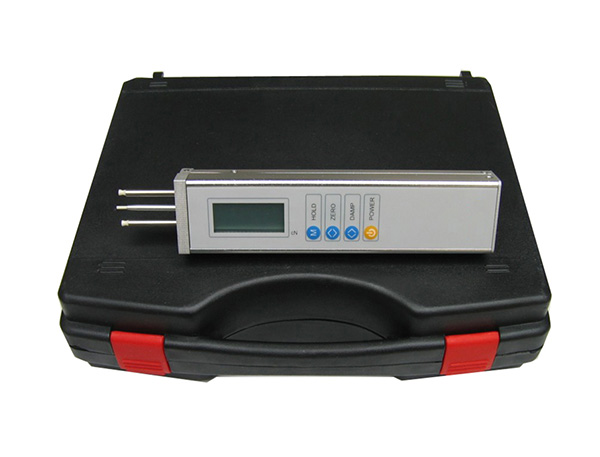

XHX-08 Electronic Yarn Tension Meters are used throughout the world in a wide variety of typical as well as special applications．A few samples are shown below:
● In the Knitting Industry: exact adjusting of yarn feeders of circular knitting machines.
● In the Man-Made Fiber Industries: For wire drawing or winding machines.
● In the Wire Industries: doubling twister.
● In Cotton Textile Industries: for winding machines.
● In the Optical Fiber Industries: winding machines.
● Ifor testing cooper wire
